Deep dive into fixture plates

Published Date
December 07, 2018 - 09:15:am

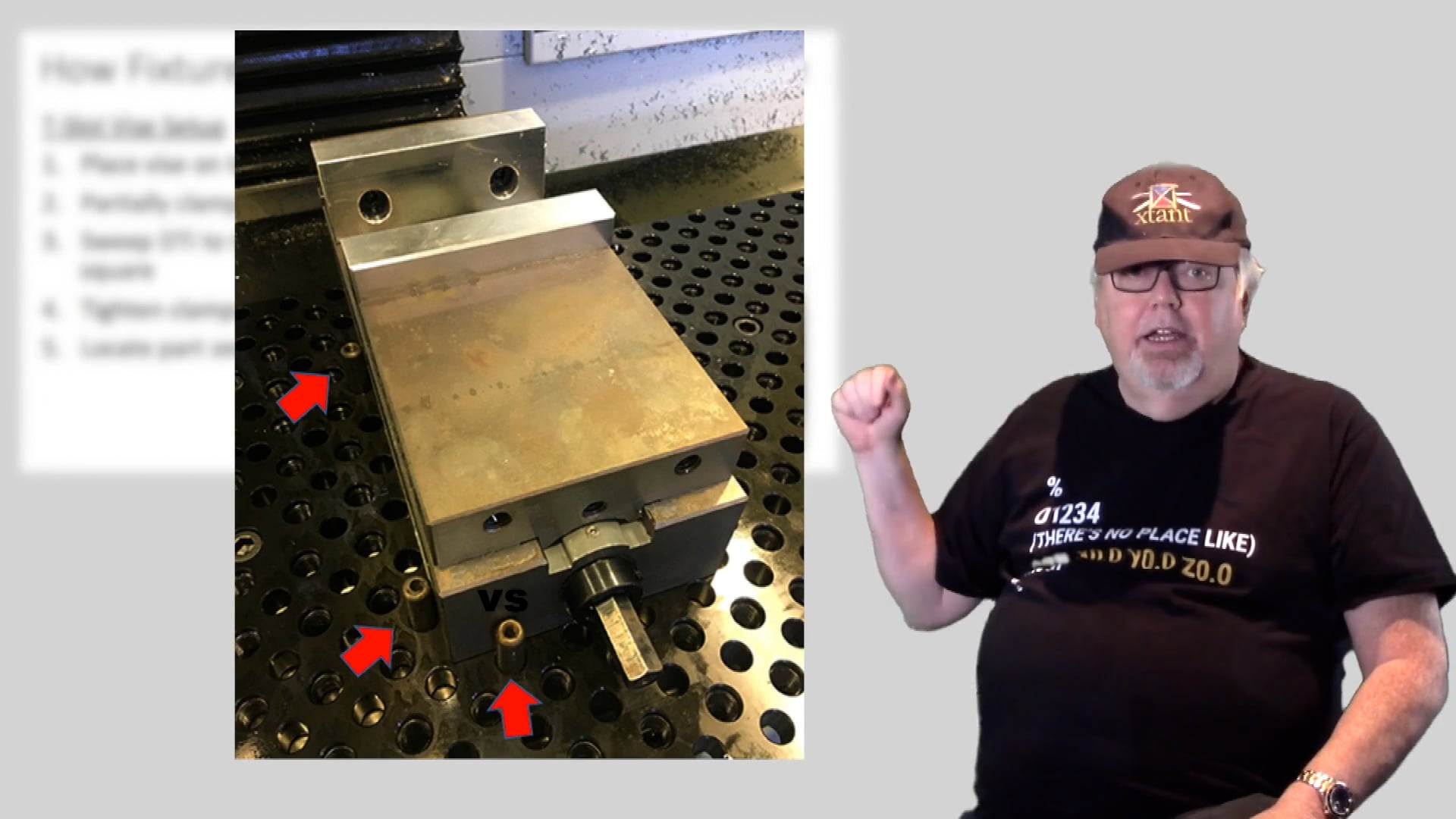

In the 18th episode of Cutting Tool Engineering's CNC Chef video series, Bob Warfield of the CNCCookbook delves into setup time savings and other benefits of using fixture plates.

"Fixture Plates can not only save you time," Warfield explains in the video, "they can help you work around the size limitations of your machine’s travel. They’re an excellent addition to any CNC milling machine."

For more information about fixture plates, check out the CNCCookbook blog here.

About The CNC Chef Video Series: The video series is a collaboration between Cutting Tool Engineering and Bob Warfield, founder of the CNCCookbook.com, which is among the most popular CNC Blogs on the Internet. Thanks to his work with CNCCookbook and the G-Wizard software series, Warfield routinely receives questions from shops all over the world. For more information about the CNCCookbook, visit his website here.
