Mastercam 2022 turning solutions

October 08, 2021

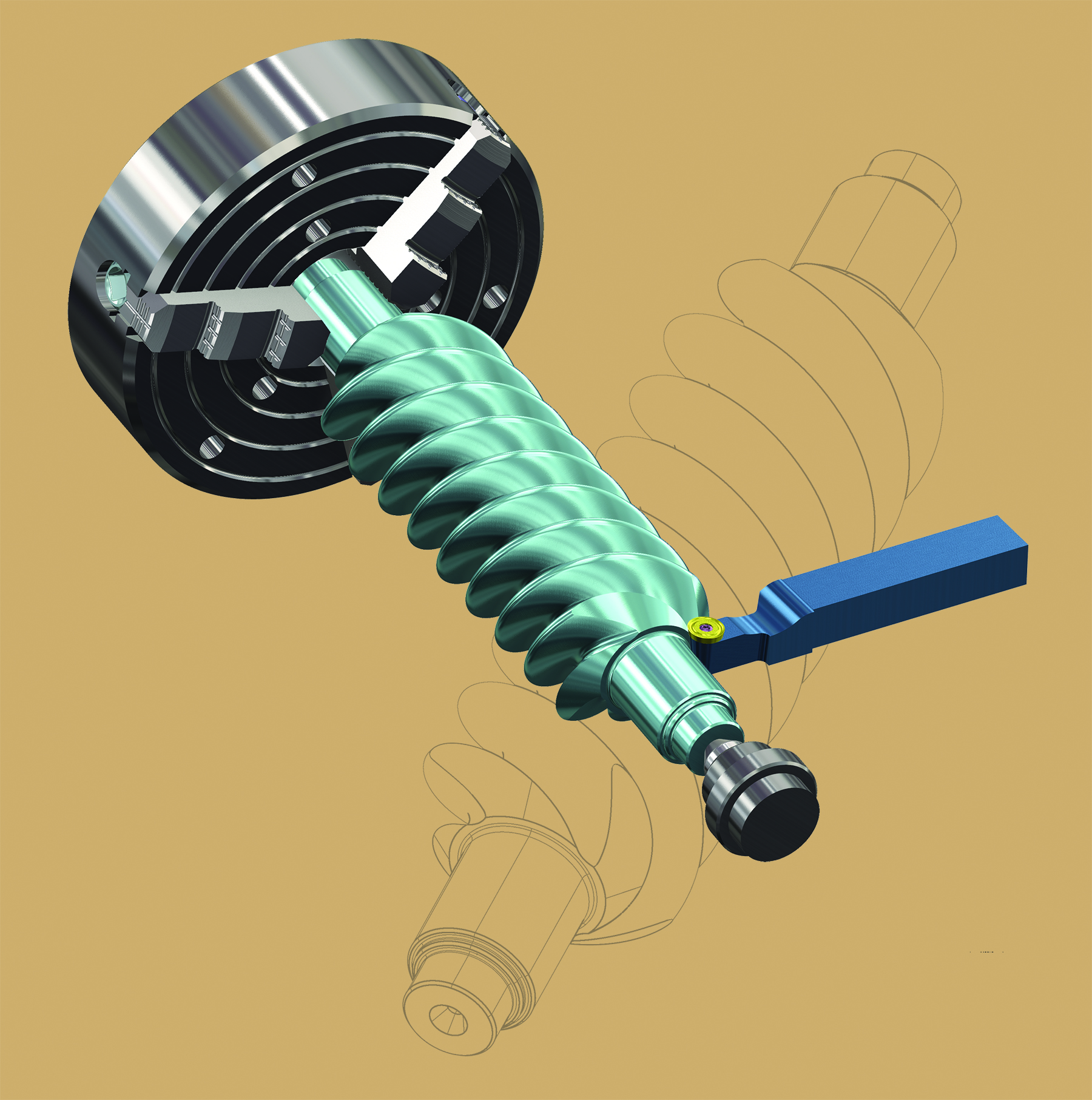

Mastercam 2022 Delivers Powerful Toolpaths and Techniques

CNC Software, Inc., developer of Mastercam, the world’s leading CAD/CAM software, announces the release of Mastercam 2022 turning solutions. From accepting and programming any CAD file to Dynamic Motion™ roughing and precision finishing, Mastercam 2022 gives you a variety of options to turn all your parts exactly as you need them. Mastercam 2022 features new Mill-Turn support, enhancements to 3D Turning Tools, Stock Diameter, and much more.

New Options for Turning

With Mastercam 2022, you can now define reusable holder assemblies. Create collections of adapters, extensions, and holders, and store them as an assembly. You can save time and avoid errors by creating reusable assemblies of modular components. These assemblies can be stored in a library and used for the creation of full 3D Lathe Tool assemblies.

When defining stock dimensions in Job Setup, a new button lets you specify the outer or inner diameter by selecting an arc or radial face. After selecting the button, you are returned to the graphics window where you can select an arc or radial face. You can also select an edge. Mastercam automatically reads the proper diameter value from the selected geometry.

Extended Support for Mill-Turn

Mastercam 2022 introduces steady rest support for Mill-Turn which allows you to precisely position and simulate steady rests throughout your machining process, adding part support capability to turning, milling, and part-handling operations. This includes new component types, enhanced component libraries, dedicated operations for each type of steady rest, part handling strategies, and simulation features.

The subprogram support that has been in other Mastercam products has also been added to Mill-Turn. Create subprograms for depth cuts and hole making operations such as drilling. Spindle Move operations in Mill-Turn now let you specify the destination as an Incremental distance. Enter a positive value to move the spindle towards its home position, or a negative value to move the spindle away from its home position.

Users now have the option to have Mastercam automatically retract the center when creating a Center Point operation in Mill-Turn. The new Generate retract operation option will enable the new operation and will create a second operation, separate from the engage operation.

Swiss Machining Solutions

Mastercam’s Swiss Solution benefits from the improvements and updates to Mastercam Lathe. Expanded options and more efficient programming are combined with Mastercam Mill to provide fast, easy Swiss programming,

Related Glossary Terms

  • computer numerical control ( CNC)

    computer numerical control ( CNC)

    Microprocessor-based controller dedicated to a machine tool that permits the creation or modification of parts. Programmed numerical control activates the machine’s servos and spindle drives and controls the various machining operations. See DNC, direct numerical control; NC, numerical control.

  • computer-aided design ( CAD)

    computer-aided design ( CAD)

    Product-design functions performed with the help of computers and special software.

  • gang cutting ( milling)

    gang cutting ( milling)

    Machining with several cutters mounted on a single arbor, generally for simultaneous cutting.

  • inner diameter ( ID)

    inner diameter ( ID)

    Dimension that defines the inside diameter of a cavity or hole. See OD, outer diameter.

  • lathe

    lathe

    Turning machine capable of sawing, milling, grinding, gear-cutting, drilling, reaming, boring, threading, facing, chamfering, grooving, knurling, spinning, parting, necking, taper-cutting, and cam- and eccentric-cutting, as well as step- and straight-turning. Comes in a variety of forms, ranging from manual to semiautomatic to fully automatic, with major types being engine lathes, turning and contouring lathes, turret lathes and numerical-control lathes. The engine lathe consists of a headstock and spindle, tailstock, bed, carriage (complete with apron) and cross slides. Features include gear- (speed) and feed-selector levers, toolpost, compound rest, lead screw and reversing lead screw, threading dial and rapid-traverse lever. Special lathe types include through-the-spindle, camshaft and crankshaft, brake drum and rotor, spinning and gun-barrel machines. Toolroom and bench lathes are used for precision work; the former for tool-and-die work and similar tasks, the latter for small workpieces (instruments, watches), normally without a power feed. Models are typically designated according to their “swing,” or the largest-diameter workpiece that can be rotated; bed length, or the distance between centers; and horsepower generated. See turning machine.

  • lathe bit ( lathe tool)

    lathe bit ( lathe tool)

    Cutting tool for lathes and other turning machines. Normally a single-point cutting tool, square in cross section and ground to a shape suitable for the material and task. Intended for simple metal removal, threading, slotting or other internal or external cutting jobs. Clearance to prevent rubbing is provided by grinding back rake, side rake, end relief and side relief, as well as side- and end-cutting edges.

  • milling

    milling

    Machining operation in which metal or other material is removed by applying power to a rotating cutter. In vertical milling, the cutting tool is mounted vertically on the spindle. In horizontal milling, the cutting tool is mounted horizontally, either directly on the spindle or on an arbor. Horizontal milling is further broken down into conventional milling, where the cutter rotates opposite the direction of feed, or “up” into the workpiece; and climb milling, where the cutter rotates in the direction of feed, or “down” into the workpiece. Milling operations include plane or surface milling, endmilling, facemilling, angle milling, form milling and profiling.

  • milling machine ( mill)

    milling machine ( mill)

    Runs endmills and arbor-mounted milling cutters. Features include a head with a spindle that drives the cutters; a column, knee and table that provide motion in the three Cartesian axes; and a base that supports the components and houses the cutting-fluid pump and reservoir. The work is mounted on the table and fed into the rotating cutter or endmill to accomplish the milling steps; vertical milling machines also feed endmills into the work by means of a spindle-mounted quill. Models range from small manual machines to big bed-type and duplex mills. All take one of three basic forms: vertical, horizontal or convertible horizontal/vertical. Vertical machines may be knee-type (the table is mounted on a knee that can be elevated) or bed-type (the table is securely supported and only moves horizontally). In general, horizontal machines are bigger and more powerful, while vertical machines are lighter but more versatile and easier to set up and operate.

  • steady rest

    steady rest

    Supports long, thin or flexible work being turned on a lathe. Mounts on the bed’s ways and, unlike a follower rest, remains at the point where mounted. See follower rest.

  • turning

    turning

    Workpiece is held in a chuck, mounted on a face plate or secured between centers and rotated while a cutting tool, normally a single-point tool, is fed into it along its periphery or across its end or face. Takes the form of straight turning (cutting along the periphery of the workpiece); taper turning (creating a taper); step turning (turning different-size diameters on the same work); chamfering (beveling an edge or shoulder); facing (cutting on an end); turning threads (usually external but can be internal); roughing (high-volume metal removal); and finishing (final light cuts). Performed on lathes, turning centers, chucking machines, automatic screw machines and similar machines.
