HDM690 Vise

Contact Details

Kurt Mfg. Co., Industrial Products Div.
Address
9445 E. River Rd.
Minneapolis
55433
MN
United States
Phone
763-574-8309
Toll Free Phone
877-226-7823
Fax
763-574-8313
August 01, 2010

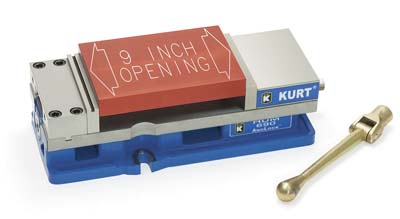

Kurt Manufacturing Co.'s new HDM690 vise is for precision clamping large parts for tool and die and production CNC applications. Featuring a 9-inch jaw opening, this new vise clamps larger parts with repeatable 0.0007" accuracy and minimal stationary jaw deflection. Designed with a rigid stationary jaw, the vise features top-down bolting and a tall body design to reduce deflection. High precision roller bearings and a specially hardened vise screw mechanism enhances precision clamping and smooth operation. The design distributes up to 6,000 lbs. of clamping force evenly and precisely across the full jaw surface. Kurt's AngLock spherical segment in the moveable jaw (originated and patented by Kurt) further reduces jaw lift. The pull-type body design stabilizes stress in the vise body, resulting in more accurate clamping of all types of parts. Adding to overall vise rigidity while absorbing machining vibration, Kurt HDM690 vises have 80,000-PSI ductile iron bodies with precision machined components. Setup features of this new vise include: Stationary jaw bolts down from top. No need to remove from table to disassemble vise. Bolting the stationary from the top reduces the stress in the body and will stay flatter after assembly. Narrower vise body width allows for more vises in the work envelope. Bolts and locates directly on standard grid plates: 40mm, 50mm and 2 inch. Has quick-change movable jaw. This HD movable jaw vise platform allows for quick-change jaw capability without wrenching screws. Plus the optional jaws provide carvability to hold flat or odd-shaped parts. Additional features include: built-in handle within the stationary jaw provides easy positioning, uses sine keys for alignment, GrooveLock jaw and workstop included, adaptable to double-actuating hydraulic operation for use with robotics (with custom parts), available with optional grid plate and swivel base.
