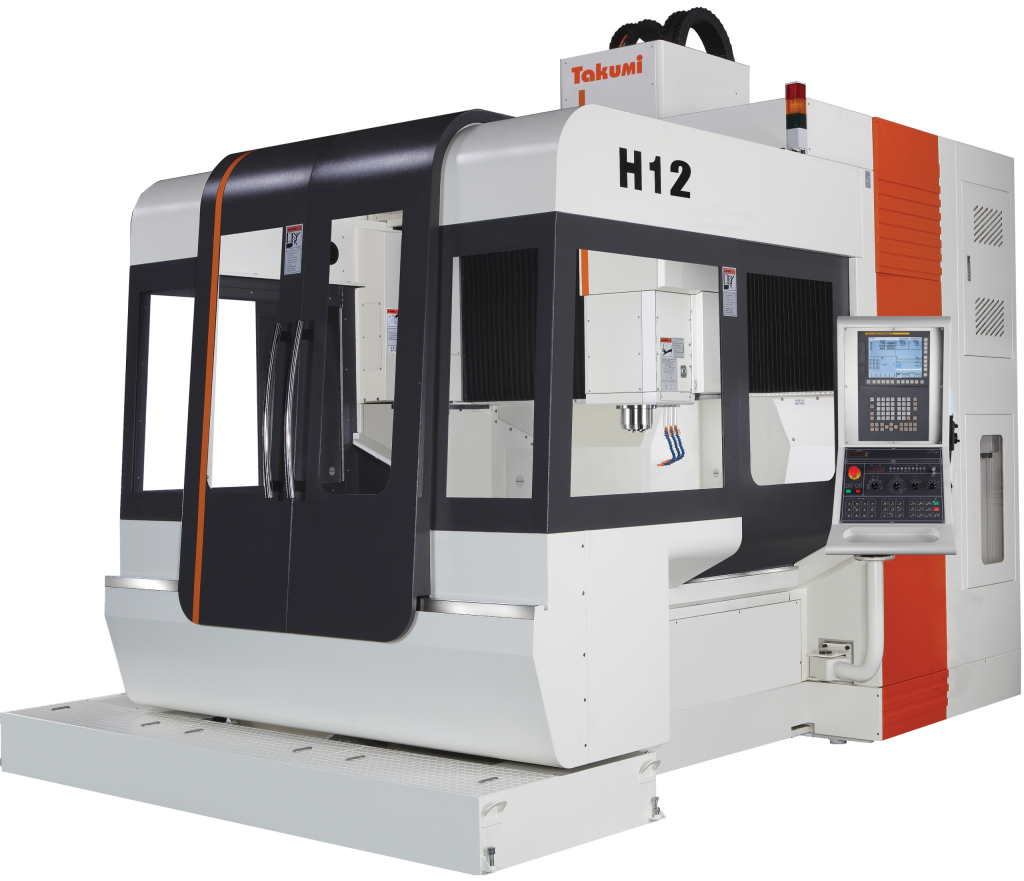

H12 CNC Double-Column Machining Center

March 17,2019
H12 CNC Double-Column Machining Center

The Takumi H12 CNC double-column machining center, designed for parts that require outstanding speed and accuracy, and unparalleled surface finish, delivers world-class performance for die/mold, aerospace and other high speed applications. The ladder structure and double-column design provide extreme rigidity and outstanding support to the head casting.

The Takumi H12 features a 15,000 rpm BIG PLUS CAT 40 inline direct-drive spindle. The one-piece base absorbs the inertia of high cutting feeds and 30 components on the machine are hand scraped for alignment during assembly.

The Takumi H12 is equipped by the FANUC 31-i-MB series control that features AICC 2 with high-speed processing, machine condition selection and Nano smoothing. The control includes 600 block look-ahead and a 1GB data server with editing capabilities.

H12 Specifications:

Table Size 59.1" x 37.8"

Table Load 5,512 lbs

XYZ Travels 53.2" x 37.4" x 23.6"

XYZ Rapids 1,181 ipm (Direct-Drive Ballscrews)

Spindle Taper BIG PLUS 40 Spindle

RPM 15,000 (Direct Drive)

Spindle HP 20.1/24.8

Spindle Torque 105.5 ft-lbs

ATC Stations 30

Machine Weight 28,600 lbs
