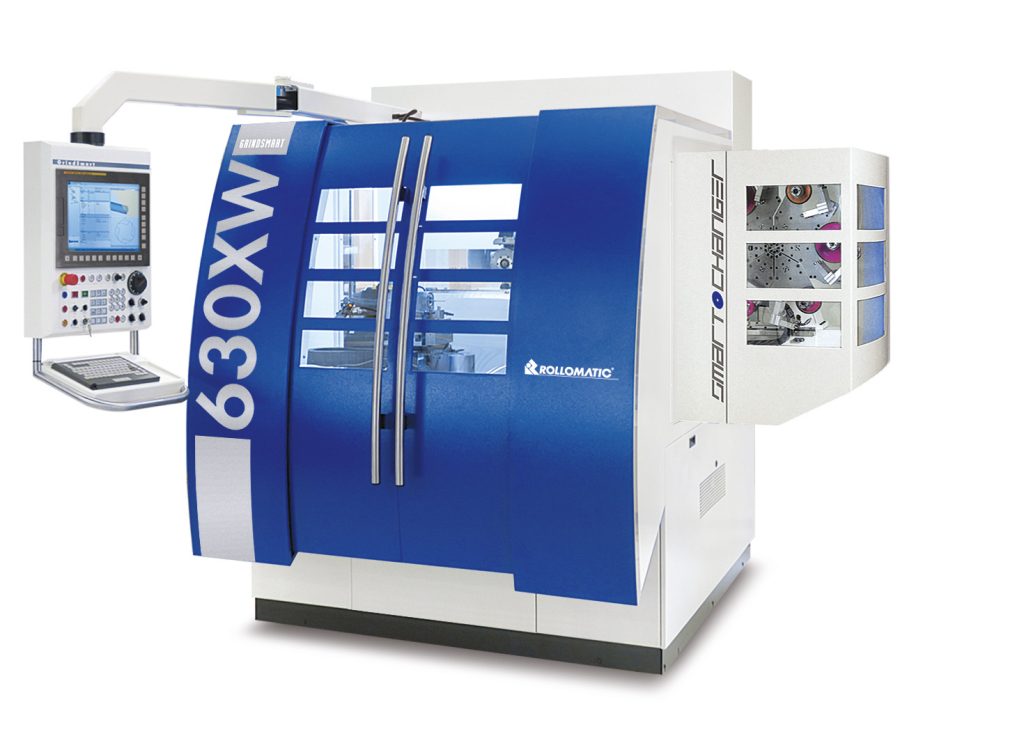

GrindSmart Model 630XW machine

August 19,2020
Fully Interpolated 6-Axis Tool Grinder for Grinding Solid Carbide Boring Bars

Rollomatic, a leading machine tool manufacturer based in Le Landeron, Switzerland, mainatins its global leadership position by highlightin the new GrindSmart® model 630XW machine with new and innovative capabilities relating to the production grinding of solid carbide boring bars and other stationary cutting tools. Boring bar grinding on the Rollomatic 6-axis tool grinding machines offers exceptional flexibility in comparison to conventional single-puropose grinders. With its 6 fully interpolating CNC axes and 6-station wheel/nozzle changer, the machine can easily be adapted for individual boring bar designs, both for short and long runs. The compact and versatile design allows full interchangeability between boring bars, inserts and round tools.

The following operations can be perfomed on the GrindSmart® series in one operation including flipping the tool:

  • Profile grinding
  • Grinding of rake face
  • Grinding of coolant flat
  • Grinding of neck
  • Other brand-dependent features

While the machine is able to grind any large-size boring bar, its capabilities extend to miniature turning tools, boring, threading, grooving and facing tools. Both right hand/left hand and ahead/behind center can be produced with equal ease. Rake angles can be ground in 2 planes. Additionally, quick-change features also can be added to the grinding operations.

Compared to dedicated insert grinders, the GrindSmart® 6-axis series together with the wheel.nozzle changer offer the highest available flexibility for grinding a variety of boring bars and other stationary cutting tools, while maintaining the ability to switch over to round-shank tools within minutes.

  • Radius contour accuracty deut to mechanical and software features as low as .0001" (2 microns).
  • Pick-and-place robot, so that the tools do not get damaged after drinding.
  • Wheel and nozzle changers with 6 positions or 16 positions. Each wheel pack can accomodate up to 4 wheels.
  • In-process rotary dressing, or automatic sticking device available.
  • Linear motion control on CNC axes.
  • Desktop tool design software with 3D tool simulation and 3D machine animation with collision warning. High level of functionality, speed, freedom in tool design and user-friendliness.
