GrindSmart 528XF Tool Grinder

April 01, 2014

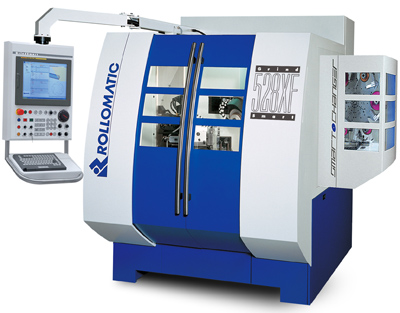

Rollomatic Inc. announces the addition of a new tool grinding machine model GrindSmart 528XF, particularly suited for long drills as well as other rotary cutting tools.

Rollomatic continues the success and growth of its GrindSmart series of multi-axis tool grinding machines by introducing a new 6-axis CNC grinder with features particularly suited for long-drills up to 12mm (.470") in diameter. This machine is furnished with a traveling workhead that allows drills with a flute length between 10" and 12" to be efficiently produced.

This machine has two distinctive new features:

• New, patented and proprietary drill steady rest that can compensate for back taper as well as a combination of back taper and cylindrical drill relief. This steady rest is dedicated for drills.

• New, patented and proprietary shank guidance system designed for quick setup.

Among other options is a camera to locate coolant holes down to 0.05mm in diameter. The machine comes standard with a 20-hp synchronous spindle giving precisely constant spindle speeds, enlarged coolant supply and a 6-station wheel/nozzle changer.

In addition, its versatility permits other solid carbide drills, high-performance endmills and many other types of rotary cutting tools to be manufactured. The machine runs on Rollomatic's software platform VirtualGrindPro.

Related Glossary Terms

  • computer numerical control ( CNC)

    computer numerical control ( CNC)

    Microprocessor-based controller dedicated to a machine tool that permits the creation or modification of parts. Programmed numerical control activates the machine’s servos and spindle drives and controls the various machining operations. See DNC, direct numerical control; NC, numerical control.

  • coolant

    coolant

    Fluid that reduces temperature buildup at the tool/workpiece interface during machining. Normally takes the form of a liquid such as soluble or chemical mixtures (semisynthetic, synthetic) but can be pressurized air or other gas. Because of water’s ability to absorb great quantities of heat, it is widely used as a coolant and vehicle for various cutting compounds, with the water-to-compound ratio varying with the machining task. See cutting fluid; semisynthetic cutting fluid; soluble-oil cutting fluid; synthetic cutting fluid.

  • grinding

    grinding

    Machining operation in which material is removed from the workpiece by a powered abrasive wheel, stone, belt, paste, sheet, compound, slurry, etc. Takes various forms: surface grinding (creates flat and/or squared surfaces); cylindrical grinding (for external cylindrical and tapered shapes, fillets, undercuts, etc.); centerless grinding; chamfering; thread and form grinding; tool and cutter grinding; offhand grinding; lapping and polishing (grinding with extremely fine grits to create ultrasmooth surfaces); honing; and disc grinding.

  • grinding machine

    grinding machine

    Powers a grinding wheel or other abrasive tool for the purpose of removing metal and finishing workpieces to close tolerances. Provides smooth, square, parallel and accurate workpiece surfaces. When ultrasmooth surfaces and finishes on the order of microns are required, lapping and honing machines (precision grinders that run abrasives with extremely fine, uniform grits) are used. In its “finishing” role, the grinder is perhaps the most widely used machine tool. Various styles are available: bench and pedestal grinders for sharpening lathe bits and drills; surface grinders for producing square, parallel, smooth and accurate parts; cylindrical and centerless grinders; center-hole grinders; form grinders; facemill and endmill grinders; gear-cutting grinders; jig grinders; abrasive belt (backstand, swing-frame, belt-roll) grinders; tool and cutter grinders for sharpening and resharpening cutting tools; carbide grinders; hand-held die grinders; and abrasive cutoff saws.

  • relief

    relief

    Space provided behind the cutting edges to prevent rubbing. Sometimes called primary relief. Secondary relief provides additional space behind primary relief. Relief on end teeth is axial relief; relief on side teeth is peripheral relief.

  • shank

    shank

    Main body of a tool; the portion of a drill or similar end-held tool that fits into a collet, chuck or similar mounting device.

  • steady rest

    steady rest

    Supports long, thin or flexible work being turned on a lathe. Mounts on the bed’s ways and, unlike a follower rest, remains at the point where mounted. See follower rest.
