Feed Unit and Controller Package

July 17,2020
MQ150SU Bundled with a Dual Axis CNC Control Package

Zagar Inc., bundles its MQ150SU with a dual axis CNC control package for a broad range of ferrous and non-ferrous drilling and tapping. The combination is intended as a good first choice for a variety of applications, as well as for optimizing current operations and can be integrated into more robust drill and tap applications.

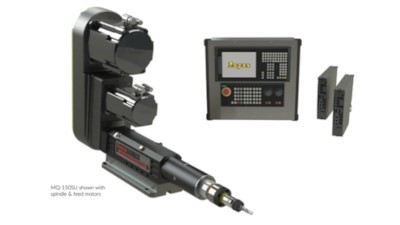

The MQ150SU is a sealed unit version of the company’s popular MQ150, featuring an internal synthetic lubrication system and grease packed bearings for long life and operation in any position. The feed unit uses a ball screw on the center line of a hardened, precision, 55mm diameter quill. It is precision ground, pre-loaded with zero backlash. An involute spline driven spindle uses EP7 high precision bearings and the unit features an HSK-32C Spindle nose supplied connection with clamping cartridge assembly.

The dual axis controller uses standard CNC commands and features an internal motion processor and PLC. A 10.4" color display and operator’s panel is user friendly. Two servo motors and two servo drives for spindle and feed axis are included, as well as motor cables.

The combination is well-suited for numerous drilling and tapping applications in stainless steel, CRS and aluminum, with maximum spindle speeds of 5,000 RPM.
