S-EW3 5-Axis Electrical Discharge Machine

July 29,2019
S-EW3 5-Axis Electrical Discharge Machine

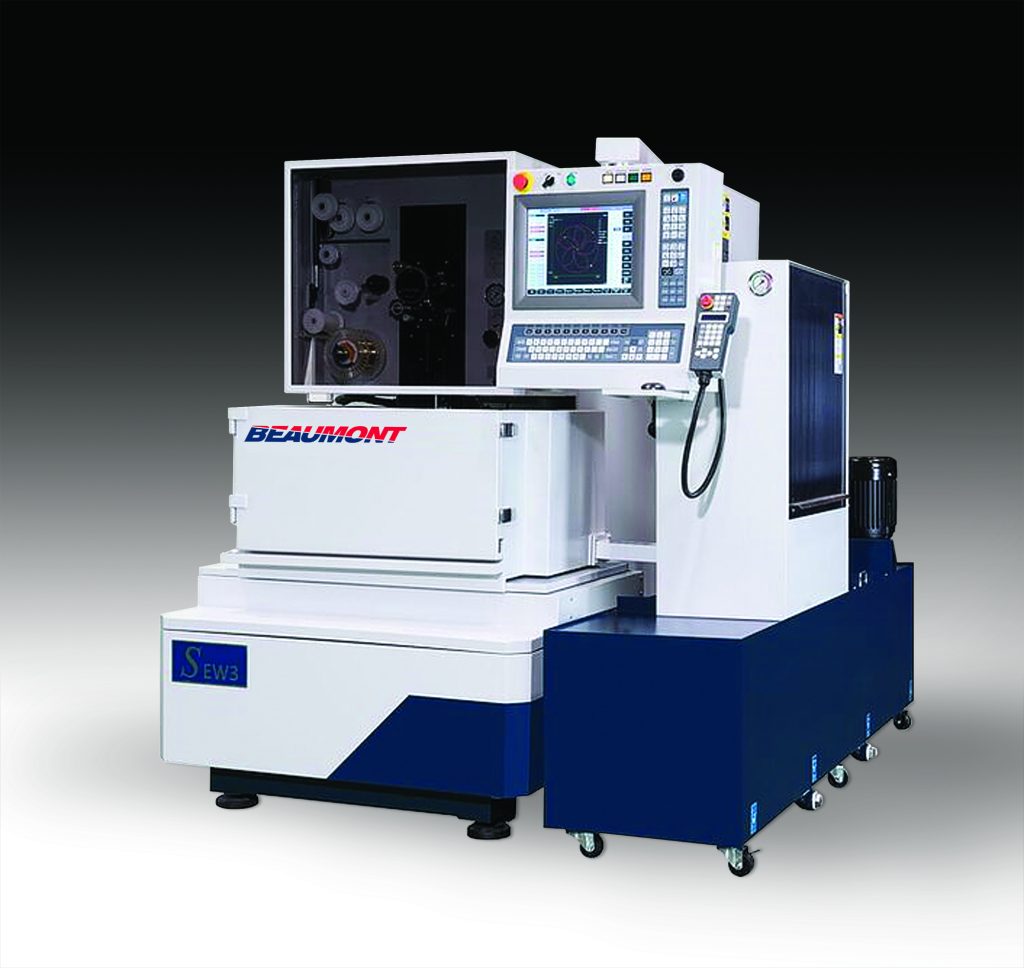

Beaumont Machine has updated its EDM line with a new machine, the S-EW3. This 5-axis servomotor EDM combines several key features for only $69,900. These include compact space, approach control, corner control, auto threader and training software.

The S-EW3 Wire EDM is designed by Optimum Machine Solutions and built by a strong Taiwan manufacturer of wire cutting machines, established in 2006. The company specializes in various series of wire cutting EDMs. In addition, the machine takes up only 42 sq. ft. of floor space, including the machine’s filtration unit. Programmable reduced power settings eliminate wire breaks on lead-in cutting. Automatic adjustment to power settings and feed rate improve corner accuracy. The EDM also features an AWT (Auto Wire Threading) that is low maintenance and highly capable.

Regarding the CNC, it features a Windows embedded operating system, an independently developed control device, a 15” Color LCD, 64  bits industrial computer and a memory card with capacity of  2GB CF. Furthermore, it includes keyboard, mouse stand, RS-232, USB disk, network and FTP.

The discharge power supply has high speed voltage withstanding MOSFET, a modular design discharge power unit and real-time sparking pulse control.

S-EW3’s features a 5-axis linear guide way, 5-axes AC servomotors, ballscrews (grade X/Y C1, U/V C3, Z C5), high stability mechanical structure and a reliable AWT system.

Optional features available are a 3 phase transformer, short message service, remote monitor system, jumbo feeder, a wire guide on top and one on the bottom.

A new “E” learning training software enhances the customer’s S-EW3 experience.
