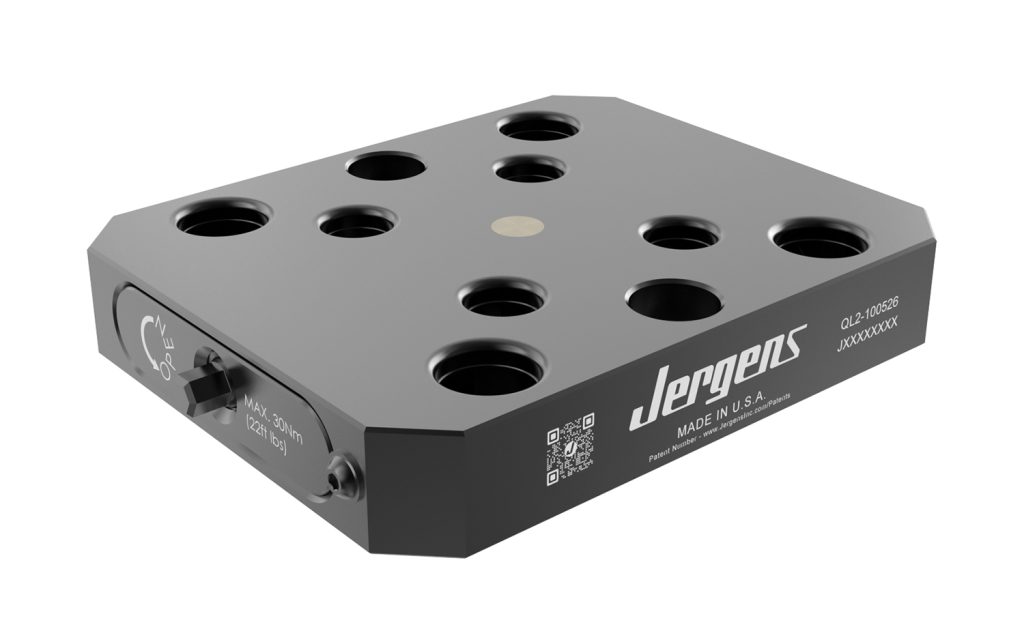

The QL2 combination pallet is the newest addition to Jergens' Quick-Loc line of quick-change products, with a new combination pallet that offers both 96mm and 52mm hole patterns in a single unit.
The QL2 features a dual-pattern configuration that the company says makes for a single solution accommodating both industry standard mounting options for broader overall application.
Jergens Quick-Loc is a modular quick-change system that allows users to achieve fast and repeatable fixture changes of various types of top tooling with receivers. The basis of the system is a 4-pull stud interface. Top tooling is located and clamped to a base receiver in a single step when the pull studs are inserted into the receiver and the clamping screw is tightened.
Quick Loc can be applied to horizontal, vertical, and rotary operations. These low-profile adapters and pallets ensure repeatability of 0.0003″ and provide clamping forces of nearly 14,000 lbs. Manufactured from case-hardened steel for high rigidity, Quick Loc is available in multiple configurations, including square, rectangular, and round receivers in both 52mm and 96mm patterns, as well as QL2, which combines these options. Use with Jergens compact 130mm self-centering vise as an industry first choice for increased machining access and quick changeover.
