Pramet ISBN10 Cutters

May 07, 2019

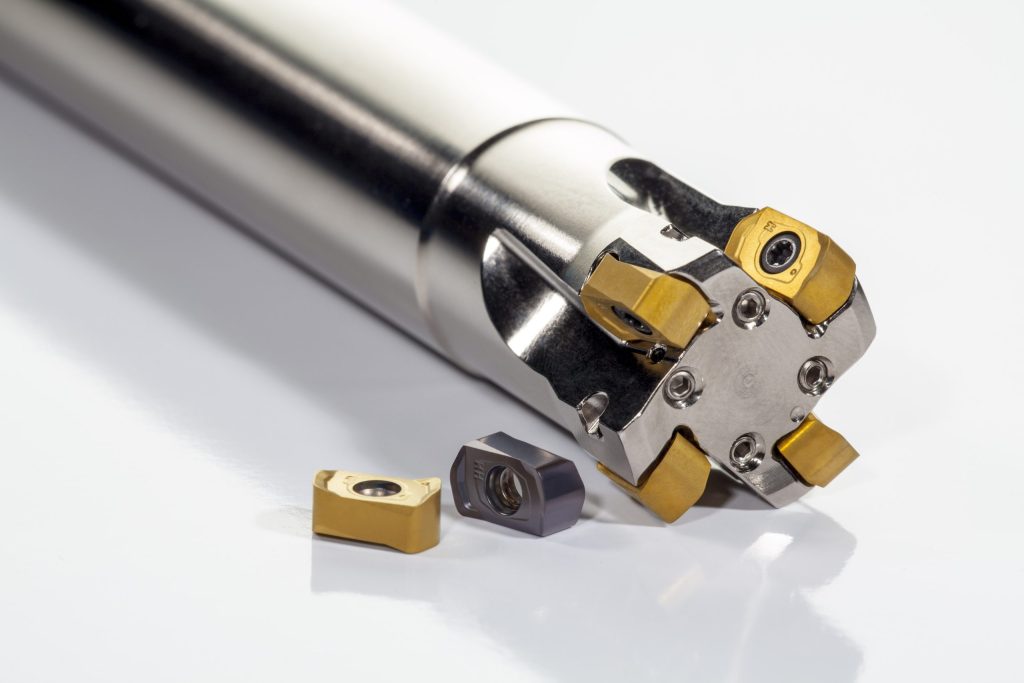

Pramet ISBN10 Cutters

The versatile Pramet ISBN10 cutters are suitable for high-feed milling, copy milling, ramping, helical interpolation, slotting and plunging. The unique pocket design in combination with the ANHX10 insert also perform shoulder and facemilling, offering a complete package for mold and die applications, from roughing to finishing.

A range of diameters are available from 0.625 inch to 1.500 inch and multiple types, including parallel, modular shanks and shell mills.

To go with the ISBN10, the Pramet BNGX10 is a patented, double-sided insert with four cutting edges to add to the overall economic and versatile offer.

The design makes it suitable for high-feed roughing even with long overhangs, while being compatible with three geometries covering most machined materials. Geometry M is for steels and cast irons, MM for low carbon steels, stainless steels and superalloys, while HM is suitable for hardened materials.

A new range of Pramet ANHX10 inserts are available for finishing operations in shoulder milling, suited for wall and bottom finishing. The single-sided insert has two cutting edges and a positive geometry for long overhangs, helping to decrease vibrations and reduce noise. ​

Both inserts offer a smoother cut, while a special through coolant design directs lubrication nearer to the cutting edge. This allows for high feed rates with axial depth of cut up to 1mm (0.040”). The HFC design has a low setting angle stretching the feed over a large cutting edge thus reducing the thickness of the chip allowing for higher feed rates.
