Lathe Carriage Shields

Contact Details

Danray Products LLC
Address
973 Featherstone Rd., Unit 115
Rockford
61107-5908
IL
United States
Phone
815-262-6667
Toll Free Phone
866-482-6807
Fax
815-282-5186
April 01,2011

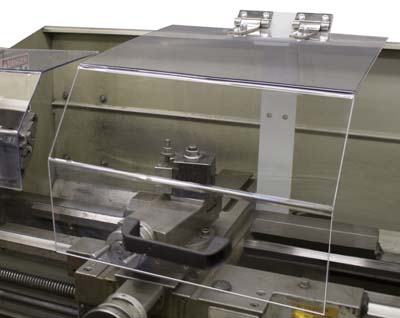

Danray Products LLC has introduced a line of heavy-duty lathe carriage (saddle) shields that are designed for manual lathes or similar machines. The shield attaches directly to the backside of the carriage so it moves with the carriage as the workpiece is being machined. This provides a barrier between individuals and the point-of-operation hazard. The shield also deflects chips, coolant, and other particles. The shield hinges back and rests at a 45 degree angle, making it easy to change the workpiece.

These shields comply with OSHA 29 CFR 1910.212 and the ANSI B11.6 safety standard for lathes.
