Heli Tang T490 Milling Cutter

December 12, 2016
Heli Tang T490 Milling Cutter

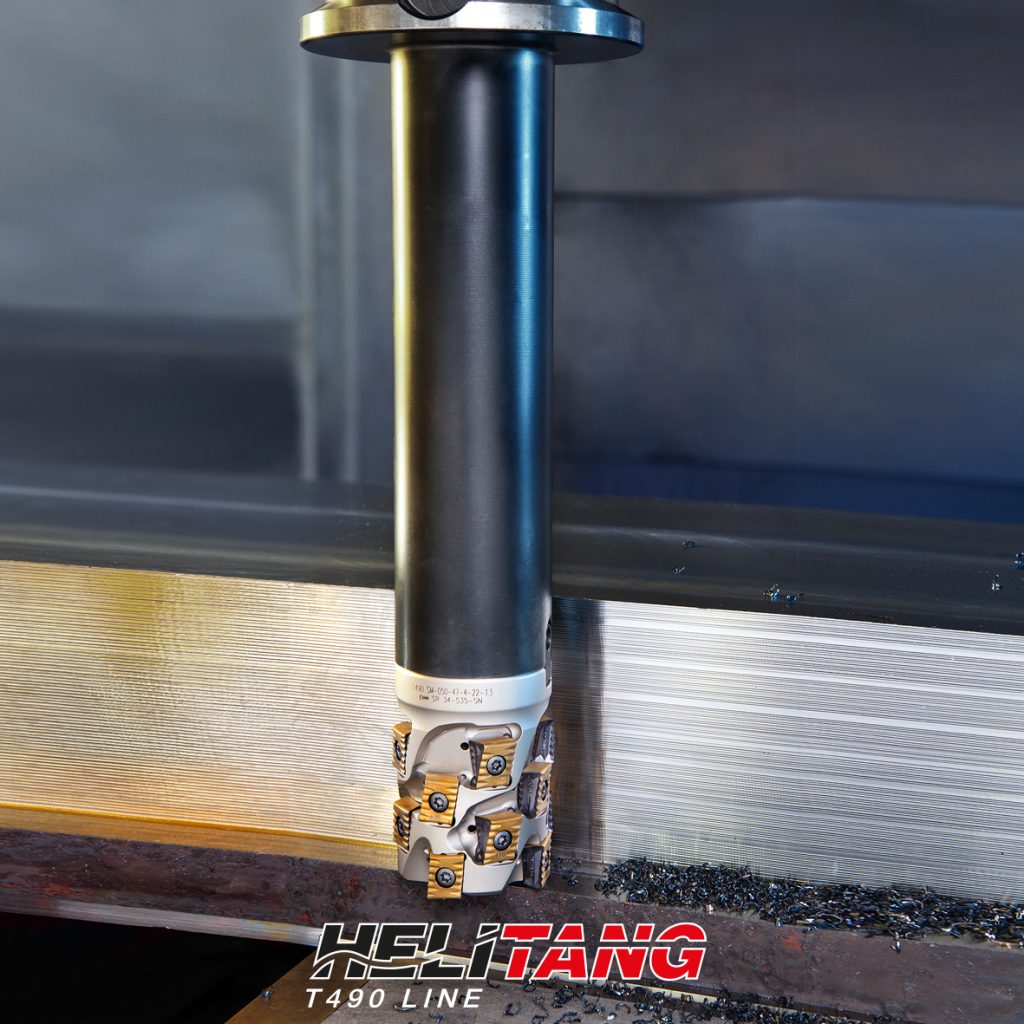

Iscar Metals Inc.’s Heli Tang T490 milling cutter for roughing accepts inserts with serrated, chip-splitting grooves. These grooves can improve performance when the machine power is limited or when evacuating chips from narrow slots or deep cavities, according to the company. The design enhanced machining efficiency when roughing, especially when tool stiffness is low because of a long overhang.
