F-712.IRP1, F-712.IRP2 Optical Power Meters for Automated Photonics Alignment Applications

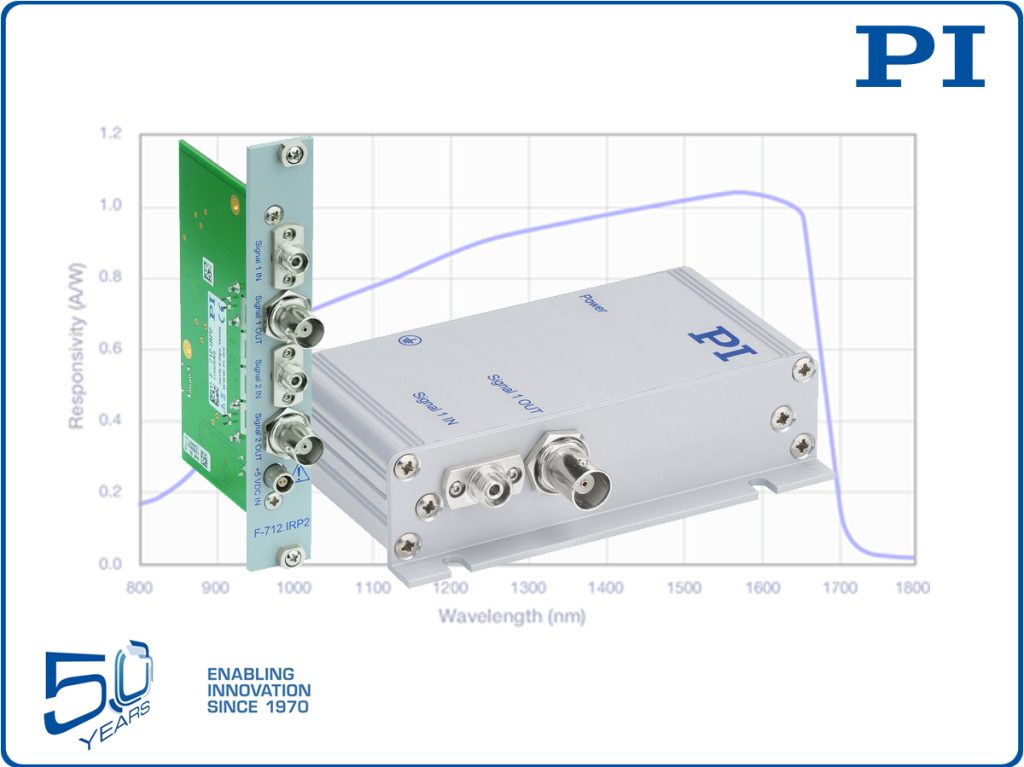

The F-712.IRP1 and its two channel sibling, the F-712.IRP2, convert optical signals in the 600nm to 1700nm range with optical power from 230 picowatts to 1.3 milliwatts into an analog output voltage of 0.1V - 1.6V. In order to be useful for fast optical alignment systems, the output signal conversion is logarithmic and optical power changes can be detected and converted with a bandwidth of 6kHz.

Features & Advantages

The logarithmic output scaling is very important for fast scans and gradient search algorithms, because the signal strength can fluctuate by several orders of magnitude within a few milliseconds, considering the minute dimensions of modern fiber optical components, such as waveguides and arrays.

The broad optical range from 600nm to 1700nm allows for usability in both the visible and infrared range without switching.

A clever design of the optical input connector / socket interface eliminates the influence of the position of the optical fiber in the connector on the optical signal.

Next to the affordability of the new power meters, the compact size of the single channel version (roughly only 4x3x2 inches) is another advantage.

This photometer detects an optical input signal and converts it into a precision, logarithmic voltage signal with high resolution. The optical power meter is used to find the maximum optical intensity quickly when integrated in fully automatic, optical FMPA alignment systems.

The logarithmic scaling of the output signal is particularly advantageous for fast scans because the signal strength can fluctuate by several orders of magnitude within a few milliseconds.

The large wavelength range of the photometer enables working in both the visible and infrared range without switching.

The design of the optical input interface is such that the placement of the optical fiber in the connector has no influence on the measurement of the optical signal.

Applications

Wafer probing, packaging. Accessories for FMPA alignment systems in all applications that do not require measuring the absolute value of the optical power.

Variants

  • A two-channel module complements the E-712 controller in F-712 alignment systems. The power is supplied via the E-711.IA4. A 0.4 m long cable for connecting to one output of the E-711.IA4 is in the scope of delivery.
  • A single-channel benchtop device with low power requirements can be supplied via a standard USB power adapter (power adapter not in the scope of delivery).
