Dove IQ MILL 845

September 06, 2023
Face Mills Carrying Double-Sided Square Inserts

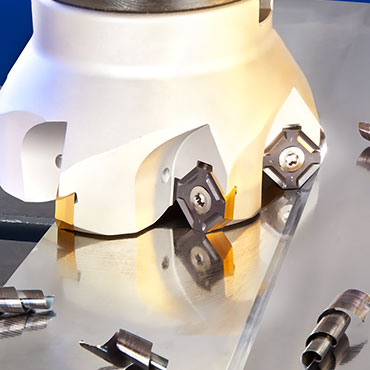

IQ845 is a family of face mills carrying double-sided square inserts with 8 cutting edges. The main characteristic of these milling cutters is the positive inclination of their cutting edges that results in a soft and light cut and high surface finish during machining.

Features

  • High positive cutter pocket inclination
  • Rigid clamping due to dovetail pocket design secured by clamping screws
  • Coarse and fine pitch cutter configurations
  • Coolant holes directed to every insert on the cutters
  • Precise double-sided square insert
  • 8 cutting edges – each edge comprises a reinforced edge and a wiper flat for a high quality machined surface
  • Positive rake face produces excellent chip formation
  • Depth of cut up to 4.6 mm (0.18") for size 07 and 2.6mm (0.1") for size 05.
  • Low power consumption
  • Both roughing and finishing on many types of material

Diameter range:

  • Metric: 16-315 mm
  • Imperial : 0.62 -10.0 "

Insert sizes: 7 mm, 5 mm

Grades:

  • IC330
  • IC808
  • IC830
  • IC810
  • IC5400
  • IC5100
