Compact Angle Head

Contact Details

Eltool Corp.
Address
1665 Central Ave.
Cincinnati
45214
OH
United States
Phone
513-723-1772
Toll Free Phone
877-435-8665
Fax
513-721-8974

39.1154299, -84.5234477

June 01,2014

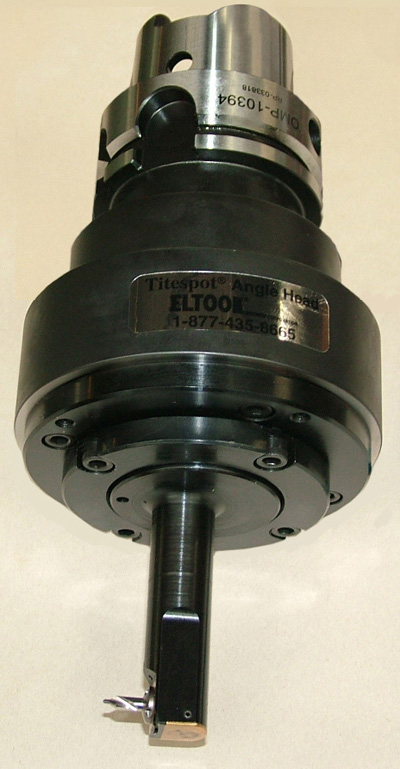

Eltool Corp.'s compact angle head can mill and drill in bores or cavities down to 58" in diameter. Machining center versions are powered by the machines high pressure coolant system, not spindle rotation, allowing multiposition machining with one head.

Available in all popular shank styles, the head loads easily from the ATC with no stop block. Live Lathe models allow secondary ID milling and grooving operations to be integrated into turning operations. VDI, BMT and other versions are offered for both face and OD mount turrets.
