Garden tool maker optimizes finishing process

Published
October 04, 2021 - 03:15am

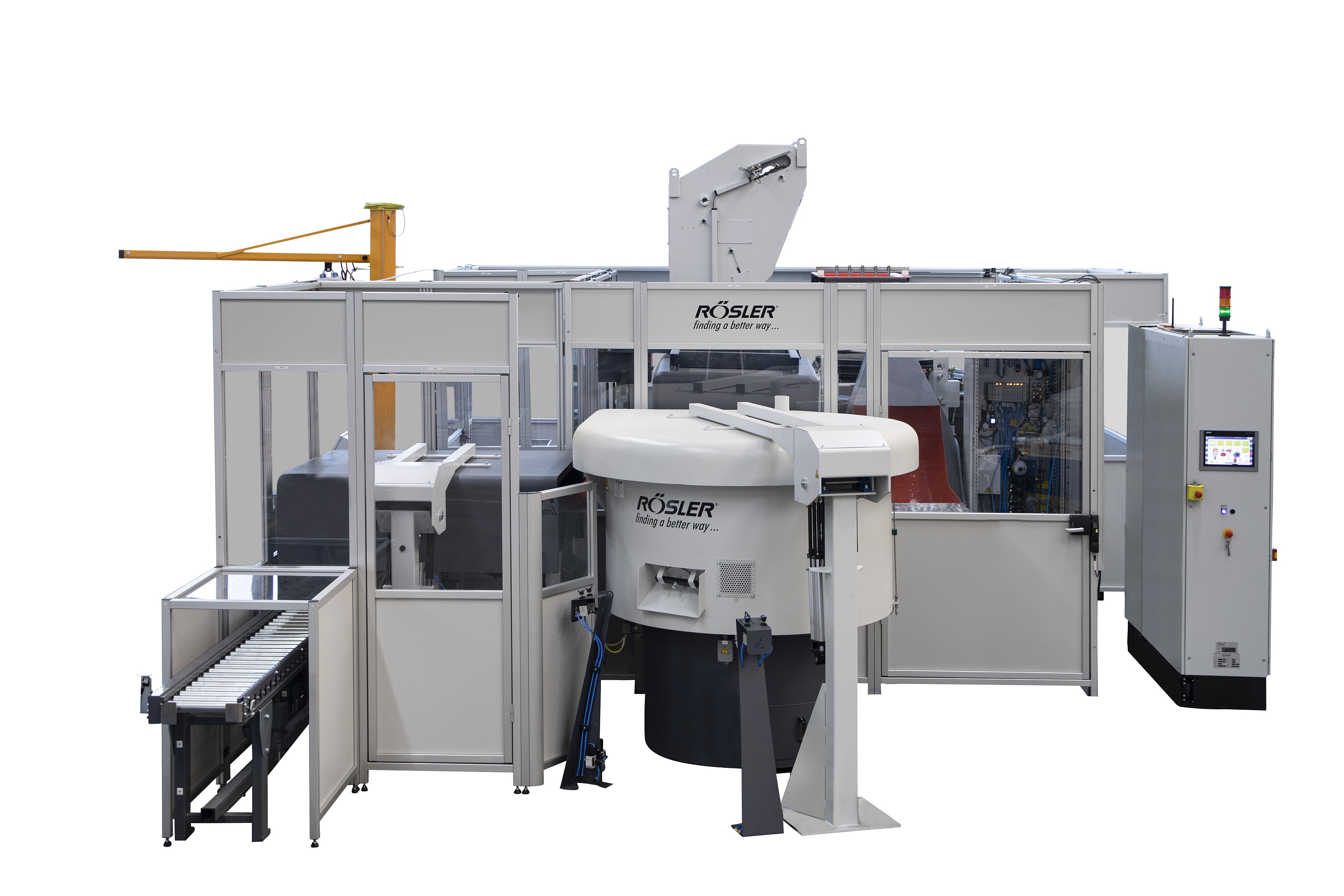

The package consists of a double batch centrifugal disk finishing machine with fully automatic work piece handling, a rotary dryer and a fully automatic centrifuge for cleaning and recycling of the process water.For more than 60 years, Gardena, a brand of the Husqvarna Group, has been offering everything ardent gardeners need. The broad product range includes innovative systems for irrigation, lawn, tree and shrub care, as well as soil cultivation. Gardena products are used in more than 80 countries all around the world.

Ultra-modern equipment and process technologies

To ensure easy and simple handling, produce excellent cutting performance and guarantee a long service life, the shear components are produced with state-of-the-art manufacturing technologies. Important steps are the stamping or laser cutting of the upper and lower knifes followed by a deburring and polishing process in mass finishing equipment. Previously the lower knifes required two separate finishing operations, one in a rotary vibrator and one in a centrifugal disk finishing machine.

To combine these two operations into one and adapt them to the latest manufacturing requirements, the existing mass finishing equipment, used over many years, was replaced. Gardena chose a finishing solution from the Rösler Oberflächentechnik GmbH, who had already supplied the machinery used to date. By investing in new equipment the customer was looking for a comprehensive optimization of the finishing process that improved not only the productivity and offered a higher capacity but also resulted in lower costs.

Finishing system produces shorter cycle times

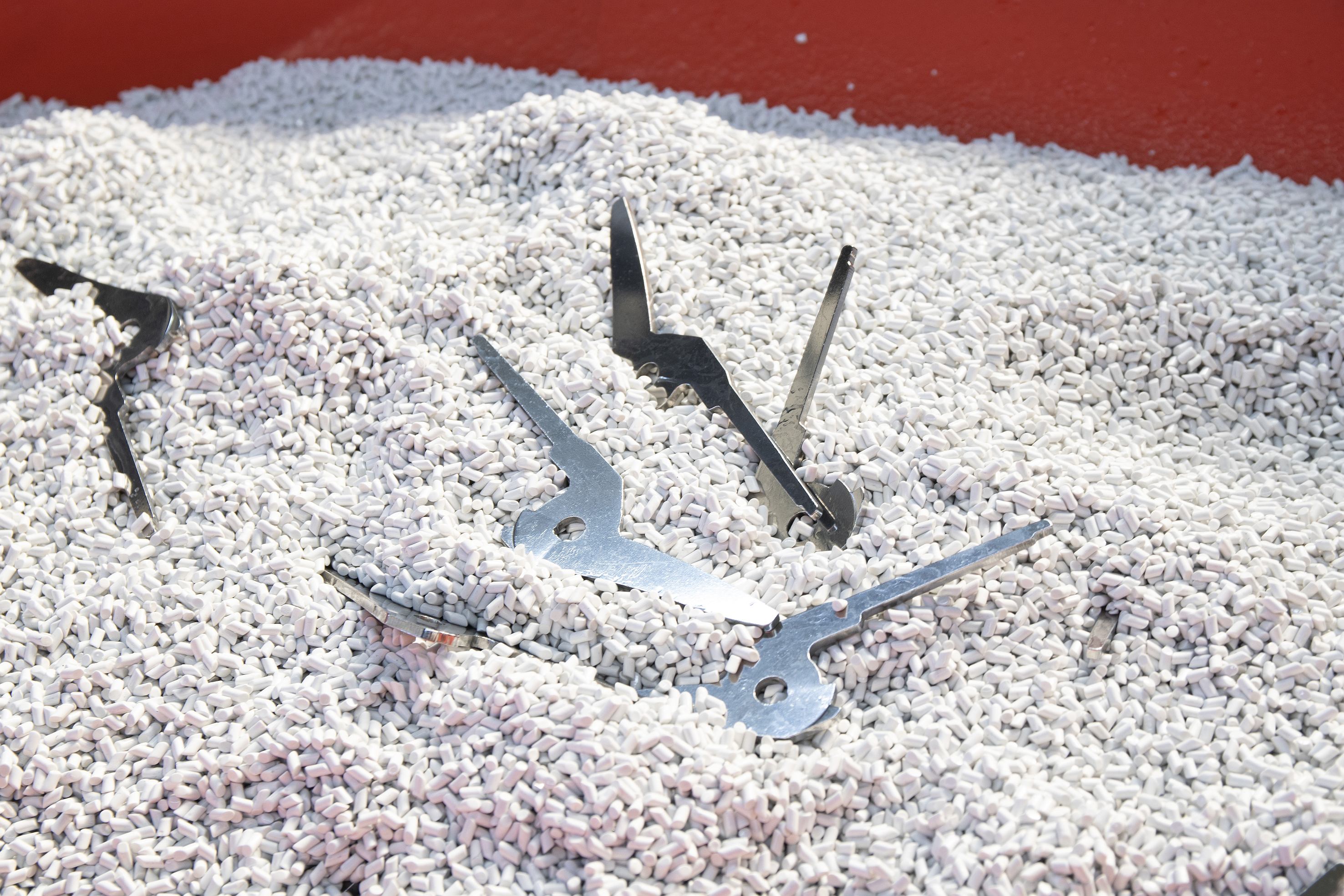

The stamped and laser-cut knives are deburred and polished in a two-stage process in order to create optimal conditions for the next manufacturing step and to guarantee a long service life.Based on the surface finishes of the steel knifes that are required for the next manufacturing steps, the Rösler process engineers ran a series of processing trials in their test lab with various processing media and different process parameters. The best results were achieved with a Keramo-Finish process in a centrifugal disk finishing machine. This includes the use of a ceramic media with minimal abrasive characteristics in combination with a grinding and polishing paste and a cleaning compound with a distinct brightening effect. The new process allows the deburring and polishing of all knifes in one single machine. The rotary vibrator was no longer required, and the work piece handling was simplified. Moreover, depending on the work piece type, the new Keramo-Finish process reduces the processing times by 25 % to over 100 % and also allows bigger work piece batches. This helped to reduce the operational costs by around 10 % with, at the same time, greatly improved finishing results.

Fully automatic processing in a double batch system

The new double batch centrifugal disk finishing machine was perfectly integrated into the manufacturing flow at Gardena. Work piece specific processing programs stored in the PLC controller allow the targeted finishing of the various knife types.

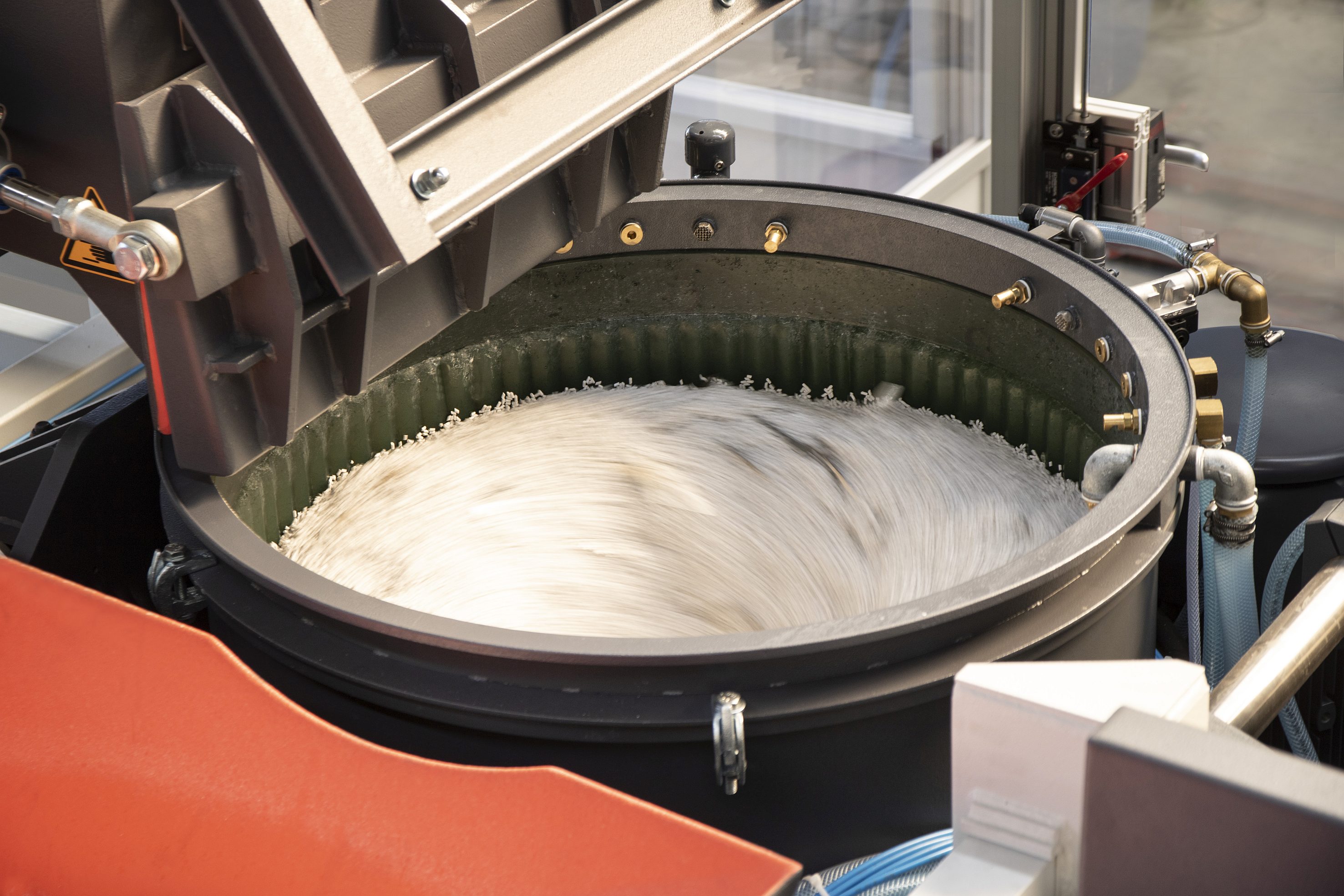

The best results were achieved with a Keramo-Finish process in a centrifugal disk finishing machine.After stamping, respectively, laser cutting the work pieces are collected in perforated metal bins. The operator utilizes a swing crane to dump the raw knife components into a loading device that transfers them into a vibratory feed hopper. After the respective finishing program has been manually selected, the hopper automatically feeds a work piece batch into the work bowl for processing. After the preset finishing time the work bowl gently dumps the mix of finished work pieces and media onto a vibratory hopper from where the mix is transferred to a vibratory separation unit. There, with a precisely sized hole screen, the media and finished work pieces are separated from each other. At the same time, a special undersize media screen is discharging media that is no longer suitable for the finishing process. This guarantees a continuous high process stability.

While the media is returned into the work bowl, the finished knife blanks are transferred to the drying station filled with a maize-cellulose product. The rotary dryer RT 550 Euro-DH is equipped with an innovative new heating system that guarantees not only fast, reliable and spot-free drying of the work pieces but also produces energy savings of up to 40 % compared to conventional rotary dryers. After completion of the drying cycle the knifes are transferred to another vibratory hopper that loads them into waiting small transport carriers made from plastic.

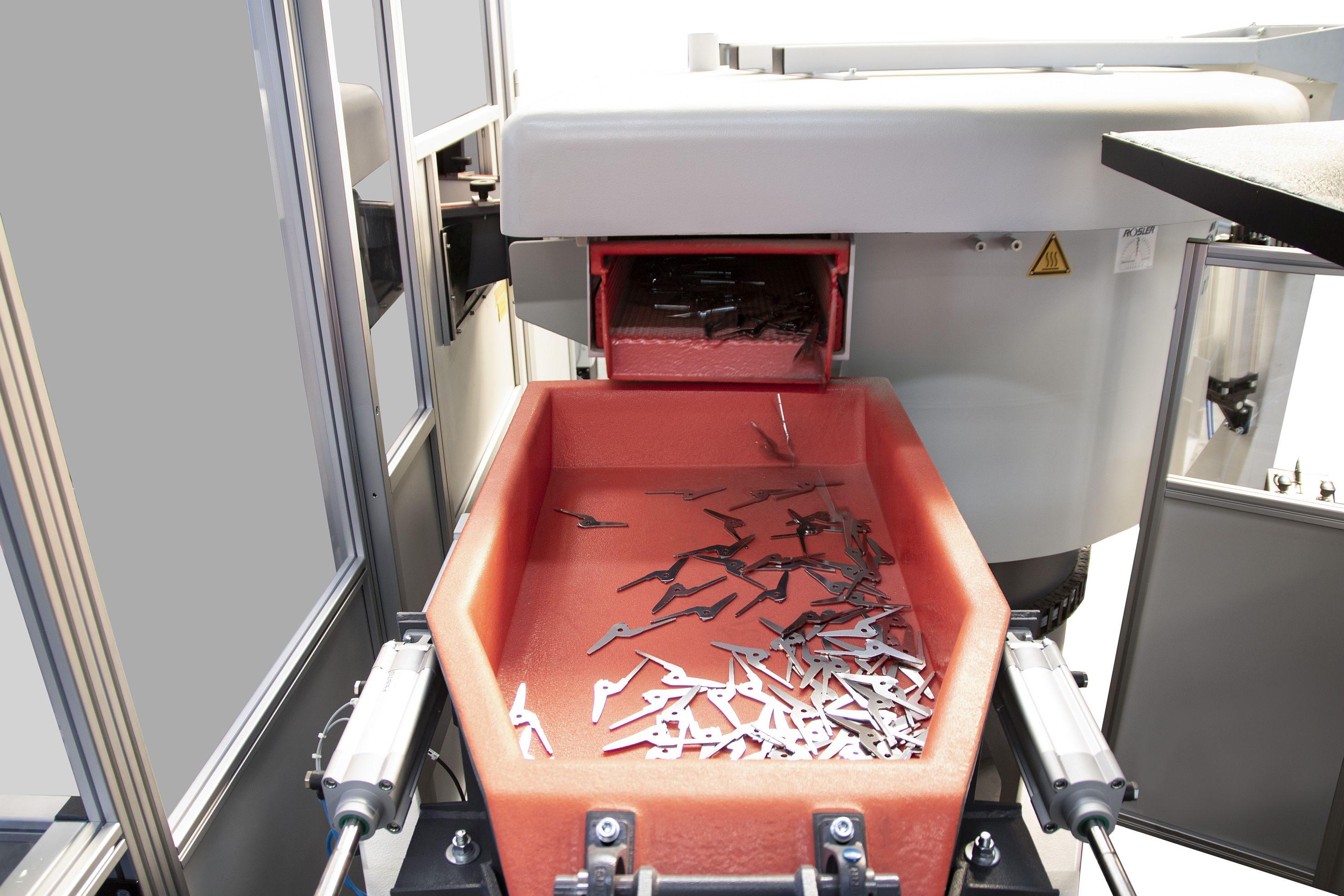

The finished knife blanks are transferred to the drying station filled with a maize-cellulose product. The rotary dryer RT 550 Euro-DH is equipped with an innovative new heating system that guarantees not only fast, reliable and spot-free drying of the work pieces but also produces energy savings of up to 40 %.A fully automatic Z 1000 centrifuge is cleaning the process water and recycling it back to the mass finishing system for re-use in the finishing process. This helps save valuable resources. The drastically reduced water consumption, along with the innovative finishing solution and well-planned process controls ensure a sustainable and efficient operation of the new mass finishing system.

For more information, visit: www.rosler.com.
