Gaining control of a Blanchard grinder

Published Date
May 24, 2018 - 11:15:am

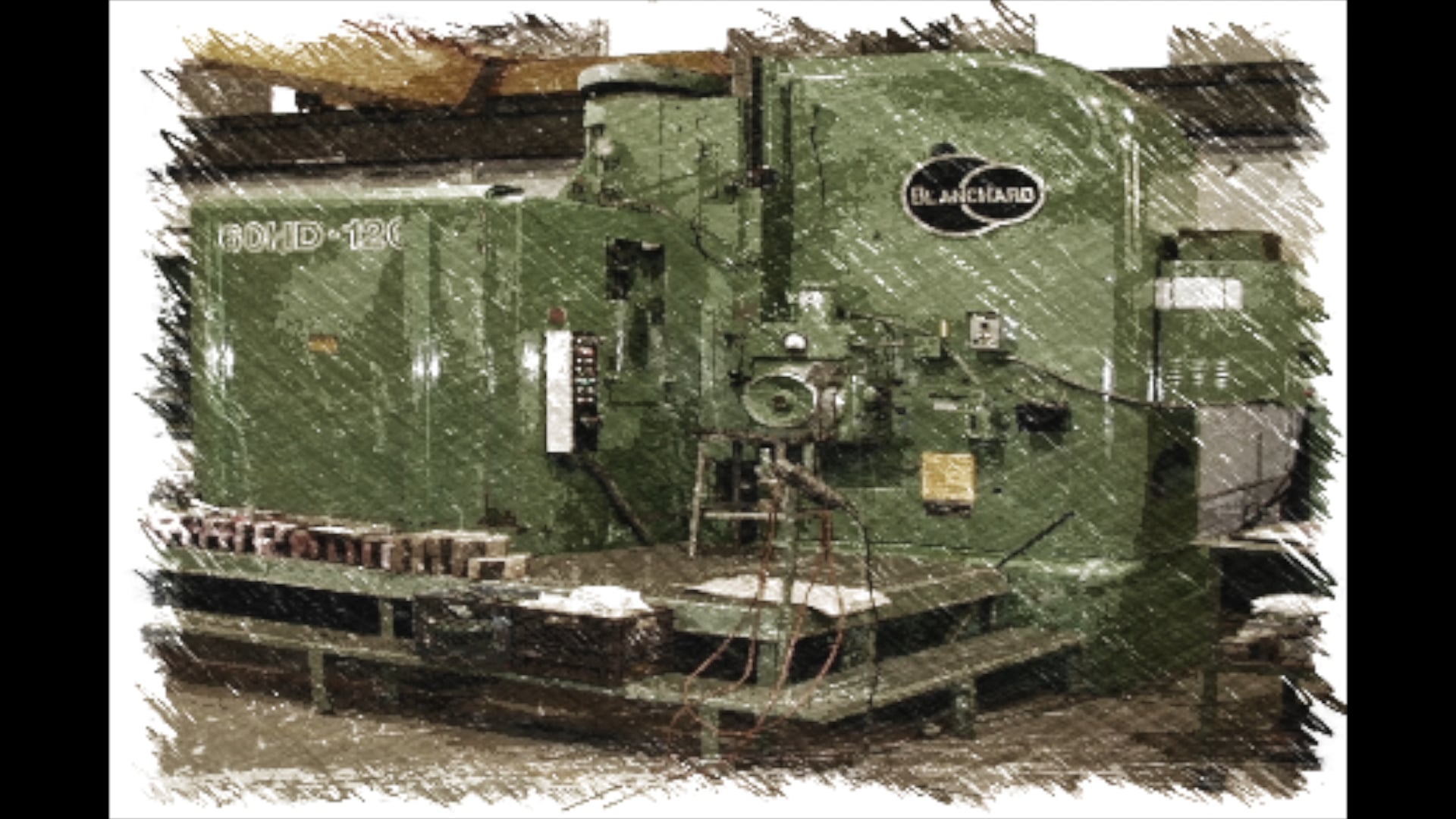

Blanchard grinding has typically been a manual process for many shops. The simplicity of a Blanchard makes the operation of the machine easy to learn and easy to run. The old dials and handwheels found on Blanchard grinders still work well and get the job done. However, there’s an even easier way to run a Blanchard through the addition of a CNC.

Blanchard began adding CNCs to its machines in the 1990s. These early controls offered by Blanchard were plagued with issues. Often, many shops will shy away from Blanchard grinders that have the original controls on them because of their reputation for being complicated to operate.

When Bourn & Koch Inc. acquired Blanchard in 2004, B&K immediately began building new Blanchard grinders and remanufacturing existing machines. Since then, B&K has offered FANUC CNCs for the machines. The latest models have the FANUC 35i-Model B control. B&K developed a human-machine interface to enable conversational programming. Therefore, programming a grinding process is a simple procedure.

The CNC controls both axes of the machine: X (horizontal table traverse) and Z (vertical grinding head travel). The addition of a CNC allows for precise control over the grinding head downfeed to 0.0001" increments. Thus, extremely close tolerances can be held.

Adding CNC to a Blanchard grinder also makes the machine easier to operate and maintain. Servomotors now drive the machines axes, eliminating the need for costly maintenance of noisy gearboxes. The grinders still have a heavy-duty lead screw to provide an adequate level of power behind the head downfeed.

For repetitive jobs, standard M and G code is used to program machine cycles. A standard grinding program, which is provided with all CNC Blanchard grinders, can be easily edited by the operator or programmer. Numerous programs can be written and saved for later use. For high-mix, low-volume work, the MPG handwheel allows operators to run the machine manually just as they would with the big, old handwheel that Blanchard operators are used to.

A unique function offered for Blanchard grinders is teach mode. This mode allows for fast programming of auto-cycle by “teaching” the machine where the start of the grinding cycle is. The operator moves the grinding head to the start position manually, then programs in an offset to compensate for wheel wear. The auto cycle performs rough and finish grinding along with a programmed spark-out cycle and automatic demagnification of the chuck. Once the workpiece is taught to the machine, the program can be run simply by pressing cycle start on the control, after the workpieces are loaded onto the chuck.

Another great function of the CNC is a programmable spindle load meter—a standard feature. The spindle load meter displays the load on the grinding spindle as a percentage. The meter can be programmed in two different modes: feed hold at a programmed spindle load and auto-retract at a programmed spindle load.

Feed hold mode allows the operator to maximize production without damaging the workpiece. Once the programmed spindle load is reached, the machine will hold its position until the spindle load drops below the programmed spindle load. The machine will then resume feeding the grinding head down until the spindle load is reached or the workpiece is ground to size.

Auto-retract mode allows the operator to program the head to retract once a desired spindle load is reached. This is particularly helpful for ensuring parts are ground to size in automatic or programmed cycles. For instance, the load meter can be programmed to retract the head once idle spindle load is reached. At an idle spindle load, the machine is no longer grinding and the workpiece is ground to size.

Of the nine standard Blanchard models, the 22AD-42, which can grind parts up to 48" in diameter, is the most popular. B&K is currently redesigning the grinder to provide 100 hp on a direct-drive head. This effort will effectively double the grinding power without going to a geared head. The redesign also involved converting the X-axis drive to a servo cylinder so it will be a positional cylinder.

Related Glossary Terms

  • chuck

    chuck

    Workholding device that affixes to a mill, lathe or drill-press spindle. It holds a tool or workpiece by one end, allowing it to be rotated. May also be fitted to the machine table to hold a workpiece. Two or more adjustable jaws actually hold the tool or part. May be actuated manually, pneumatically, hydraulically or electrically. See collet.

  • computer numerical control ( CNC)

    computer numerical control ( CNC)

    Microprocessor-based controller dedicated to a machine tool that permits the creation or modification of parts. Programmed numerical control activates the machine’s servos and spindle drives and controls the various machining operations. See DNC, direct numerical control; NC, numerical control.

  • conversational programming

    conversational programming

    Method for using plain English to produce G-code file without knowing G-code in order to program CNC machines.

  • feed

    feed

    Rate of change of position of the tool as a whole, relative to the workpiece while cutting.

  • grinding

    grinding

    Machining operation in which material is removed from the workpiece by a powered abrasive wheel, stone, belt, paste, sheet, compound, slurry, etc. Takes various forms: surface grinding (creates flat and/or squared surfaces); cylindrical grinding (for external cylindrical and tapered shapes, fillets, undercuts, etc.); centerless grinding; chamfering; thread and form grinding; tool and cutter grinding; offhand grinding; lapping and polishing (grinding with extremely fine grits to create ultrasmooth surfaces); honing; and disc grinding.

  • spark-out ( sparking out)

    spark-out ( sparking out)

    Grinding of a workpiece at the end of a grind cycle without engaging any further down feed. The grinding forces are allowed to subside with time, ensuring a precision surface.
