Strato-Apex CMM

May 01, 2011

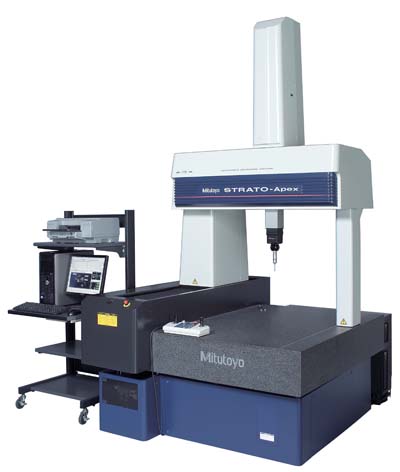

The new STRATO-Apex Coordinate Measuring Machine from Mitutoyo America Corp. combines an advanced structure with newly developed high-performance control and scanning technologies. The result is fast drive speed, high acceleration, and a CMM that provides enhanced productivity in the 1µm class.

The rigid STRATO-Apex CMM structure incorporates vibration-dampening, auto-leveling air springs and the newest compensation technology to support acceleration of 2,598mm/sec.2 (3D), 0.23g (3D) and measuring scan speeds up to 3mm/s.

The STRATO-Apex features digital servo system control loops for position, speed, and current. This makes it easy to implement various types of control algorithms. Additionally, the digital servo system has a wide dynamic range and is highly resistant to drift over time. The controller is located outside the main unit to mitigate the effect of generated heat.

The ultra-high accuracy measurement units installed on each axis of the STRATO-Apex consist of high-performance reflective linear encoders that utilize ultra-high precision crystallized glass scales.

The available software options enable the STRATO-Apex to tackle a wide variety of measurement applications. Software packages include GEOPAK, a high-functionality general-purpose measurement program which is at the heart of MCOSMOS (Mitutoyo Controlled Open System for Modular Operation Support) software. MCOSMOS supports virtually every CAD format while providing routines for in-line measurement, data feedback, and process management. Additional software supported includes: CAT1000S for freeform surface evaluation; CAT1000P, an offline teaching program; SCANPAK, for contour measurement; and a wide variety of programs supporting laser and vision probes.

Additionally, STRATO-Apex supports MeasurLink STATMeasure Plus, Mitutoyo's proprietary statistical-processing and process-control program. MeasurLink STATMeasure Plus performs statistical analysis and provides real-time display of measurement results for SPC applications. The program can also be linked to a higher-level network environment for enterprise-wide functionality.
