Model DL7-R24 Box Furnace

October 12, 2017
Model DL7-R24 Box Furnace

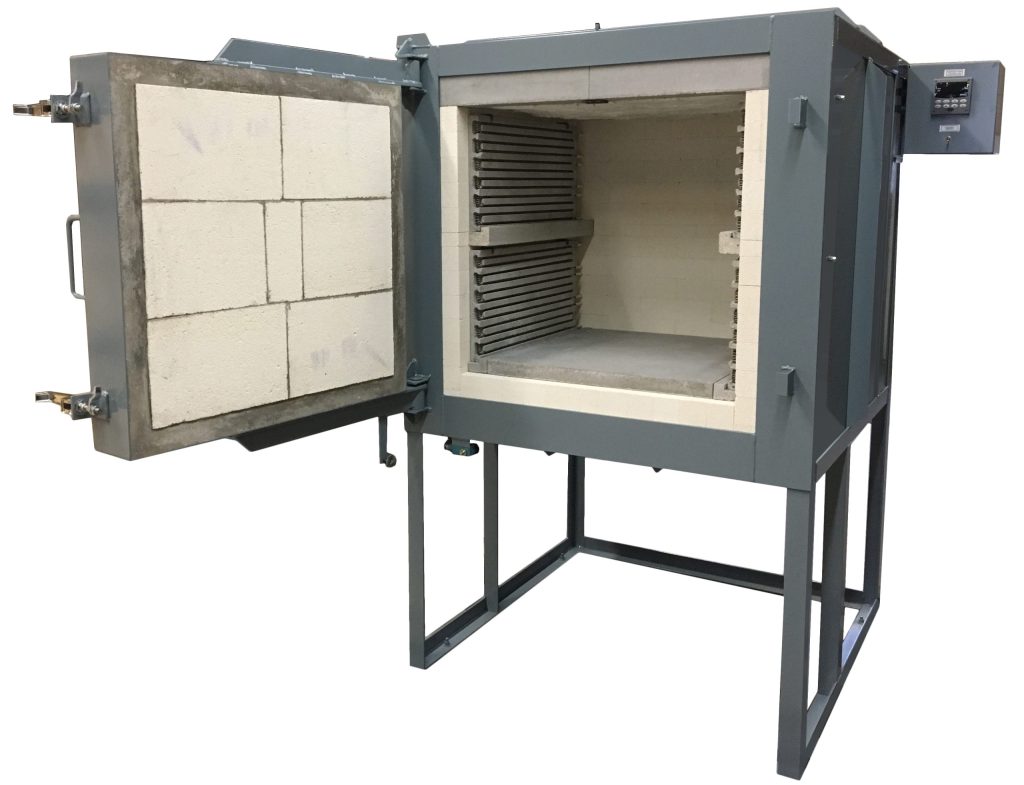

Lucifer Furnaces has designed a furnace to meet the heavy loads of a supplier of automotive safety equipment. Model DL7-R24, a box furnace with a chamber size of 24”H x 24”W x 24”L was customized to support a 1,000-lb. load of molds for heat treating at 750° F.

Starting with a reinforced angle iron steel frame with heavy gauge sheet steel facing welded to form a rigid unit, the furnace is lined with 6 ½” insulating firebrick and mineral wool block on side walls and below hearth. Ceramic fiber pyroblock modules line the roof.

Coiled wire heating elements in easy-to-replace holders are located on both side walls as stacked arrays. A special 1½”-thick hearth plate was designed to sit atop heavy-duty piers to support the load, protect the floor insulation and provide a flat working surface.

Safety features onboard include an auto-disengage feature to shut off power to heating elements when door is opened to eliminate electric shock hazard. Controls include Honeywell DC2500 microprocessor based digital time-proportioning temperature controller programmed with a single setpoint heat ramp.

The furnace, part of Lucifer’s series 7000 general-purpose box furnaces, will be used for annealing steel and stress steel relief of die cast tool.
