FixturePro Multi-Axis Rotary Adapters

November 01, 2014

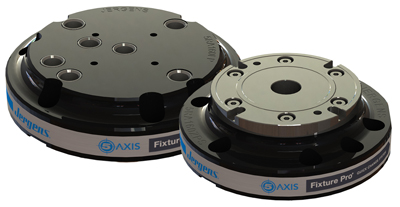

Jergens Inc. announces its universal multiple-axis rotary adapters for a range of 3-, 4- and 5-axis applications. The two additions are designed with FixturePro QLS mounting system or Jergens Zero Point System (ZPS), which provide easy implantation on a range of standard rotary indexers and tables.

The new FixturePro adapter permits the easy mounting of FixturePro system vises, dovetail vises, collet holders and the Drop & Lock pallet changers for flexible multiaxis workholding options on popular rotary indexers and trunions. The complete FixturePro system includes additional components such as subplates, risers and adapters for any 5-axis or multiaxis machine. Additionally, FixturePro quick change capability allows for reduced set up time and the ability to keep components in their original clamping through multiple operations to ensure tolerance and repeatability.

ZPS systems from Jergens provide a single step to fix, position and clamp parts, reducing setup time by as much as 90 percent. At the same time, repeatability of 0.0002" can be achieved.
