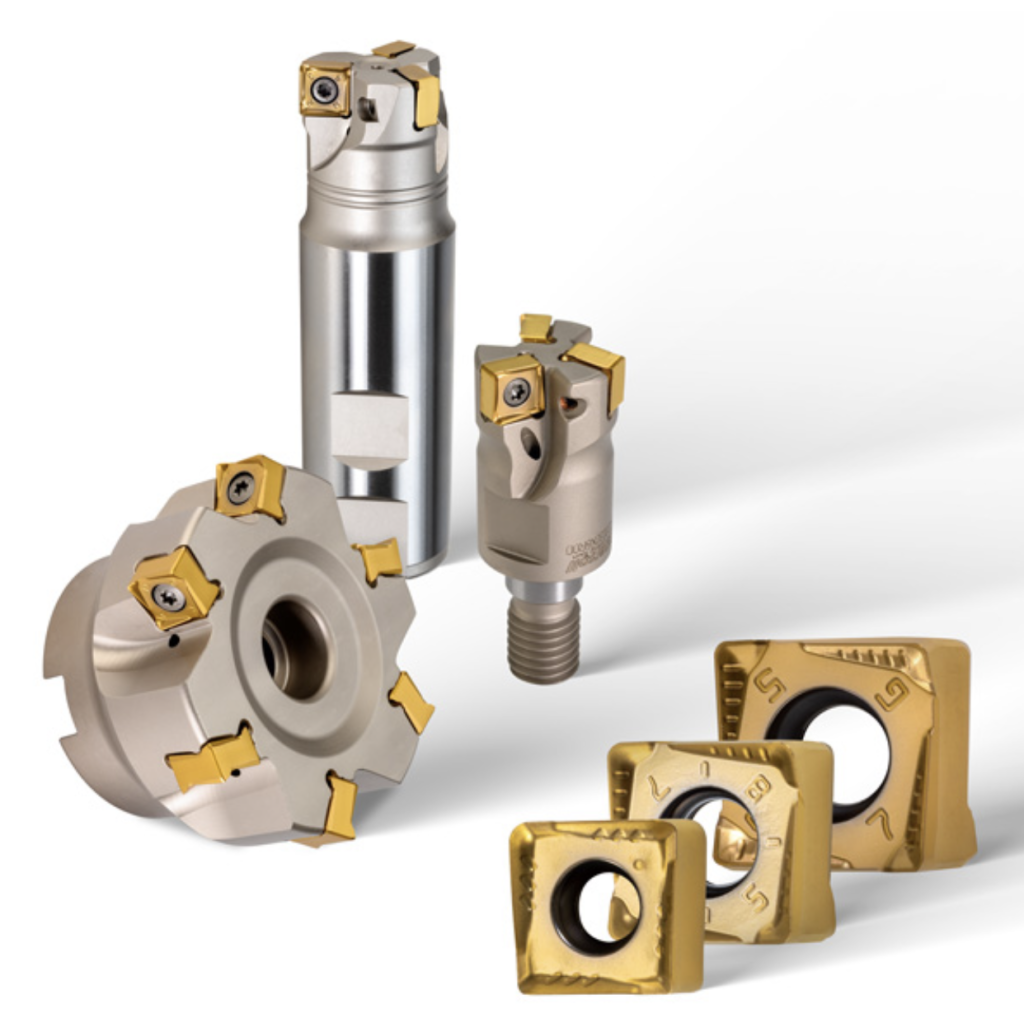

DiPosQuad Product Line Expansion

April 15, 2024
DiPosQuad Product Line Expansion

High axial rake reduces cutting loads and promotes smooth machining.

07 mm & new 10 mm inserts generate true 90° and are optimized to step down axially with minimal mismatch.

12 mm Insert generates true 90° up to .33 depth of cut.

Unequally spaced insert placement aids to diffuse vibration.

Integrated wiper flats produce 32-63 Ra finishes.

Medium and fine-pitch cutters compliment the geometry for premium performance.

Related Glossary Terms

  • axial rake

    axial rake

    On angular tool flutes, the angle between the tooth face and the axial plane through the tool point.

  • depth of cut

    depth of cut

    Distance between the bottom of the cut and the uncut surface of the workpiece, measured in a direction at right angles to the machined surface of the workpiece.

  • rake

    rake

    Angle of inclination between the face of the cutting tool and the workpiece. If the face of the tool lies in a plane through the axis of the workpiece, the tool is said to have a neutral, or zero, rake. If the inclination of the tool face makes the cutting edge more acute than when the rake angle is zero, the rake is positive. If the inclination of the tool face makes the cutting edge less acute or more blunt than when the rake angle is zero, the rake is negative.

  • wiper

    wiper

    Metal-removing edge on the face of a cutter that travels in a plane perpendicular to the axis. It is the edge that sweeps the machined surface. The flat should be as wide as the feed per revolution of the cutter. This allows any given insert to wipe the entire workpiece surface and impart a fine surface finish at a high feed rate.
