CUT 1000 OilTech

Contact Details

GF Machining Solutions
Address
560 Bond St.
Lincolnshire
60069
IL
United States
Phone
847-955-7177
Toll Free Phone
800-282-1336
Fax
847-913-5340

42.1859707, -87.9484143

May 01, 2010

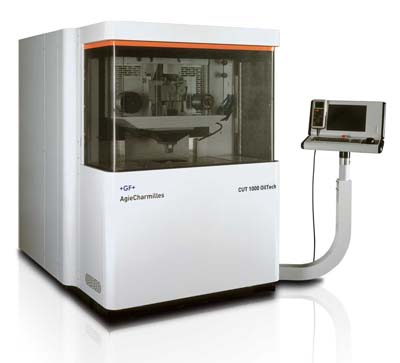

GF AgieCharmilles' new CUT 1000 OilTech wire EDM makes surface protection a priority. Designed specifically for micromachining and ultraprecision applications, the CUT 1000 OilTech uses wires as small as 0.02mm in diameter and SF technology to achieve surface finishes down to Ra 0.05µm in continuous operation. CUT 1000 OilTech uses oil as an inert dielectric. The oil eliminates the effects of corrosion due to long periods of immersion in the workpiece. As a result, multiple workpieces can remain immersed in the dielectric for overnight or weekend machining needs. The oil also enables smaller distances between the wire and workpiece to produce smaller internal radii when compared to water-based machining. Equipped with a high-performance generator and the AC Duo wire system, the machine is able to work with two wire spools, each with a different wire type, and switch between wires of different diameters automatically. Programmable via the machine control, the forward feed of the wires, just like the threading, takes place automatically and is monitored by patented sensors. GF AgieCharmilles constructed the CUT 1000 OilTech with a table design that separates the X and Y axes on a patented monobloc, eliminating mutual interference and tripping errors. A traveling table on the machine bed carries the work tank and moves the workpiece in the X direction exclusively. A second axis slide, also movable in the horizontal plane on the machine frame, accommodates the upper part of the C-frame and moves the wire in the Y direction. This configuration delivers ideal travels, positioning accuracy and taper cutting capability for machining complex, high precision parts. Cut 1000 OilTech accommodates workpieces up to 77 lbs. and has X-, Y- and Z-axis travels of 8.66"x6.29"x3.93". Additionally, CUT 1000 OilTech is equipped with Vision 5, an intuitive control system developed specifically for wire cut EDM that enables flexible data input in accordance with workshop environment.
