The changing face of metrology

Published
April 09, 2024 - 07:30am
CMM

Metrology has always been vital in precision manufacturing to ensure products meet quality and design specifications, according to Paul Maxted, director of Industrial Metrology Applications at Renishaw, in his whitepaper "The changing face of metrology."

As industry demands have increased over the years, he said that the company has seen a transformation in measurement technology — advances in metrology and improvements to manufacturing capability typically go hand-in-hand.

In this edited paper, Maxted explores the changing role of metrology in manufacturing over the last few decades and predicts how it is set to develop in the future.

Bringing metrology to the shopfloor
Processes in a traditional machine shop have always been reliant on skilled individuals – toolmakers, setters/operators, and other experts, producing quality machined parts in batches. In CNC machining operations the setup of a recurring batch of parts requires skilled input and often results in balancing a batch quantity with an excessively long set time. This not only ties up valuable machine time but adds inventory costs to a business.

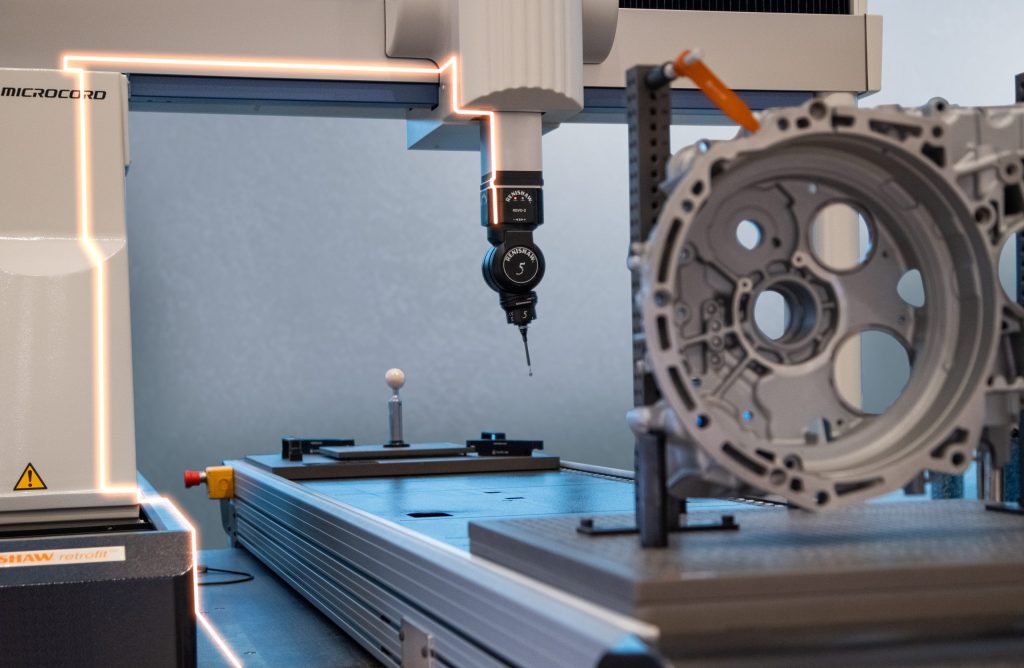

It was and is still common for a manufacturing facility to have a dedicated CMM room and skilled inspection staff. CMM rooms are often remote from the shop floor where parts can be measured in a temperature-controlled environment. Separating machining and metrology ensures measurement traceability, however, it creates a disconnect between manufacturing and quality.

CMM measurement is often a bottleneck that delays production, with CNC operators often waiting to get first-off approval before producing parts in volume. However, the alternative of immediately starting production increases the risk of non-conforming parts, waste, and quality costs which quickly escalate - a dilemma.

Implementing on-machine probing and tool setting systems to automate and reduce setup times allow for smaller batch quantities and increased productivity. Further evolutions in shop floor measurement and gauging equipment mean that metrology systems empower production people to measure accurately in-line or near-line production. Ultimately, bringing metrology to the shop floor enables faster, more frequent part and process measurement and the ability to react more rapidly to process drift and dimensional changes.

Pyramid

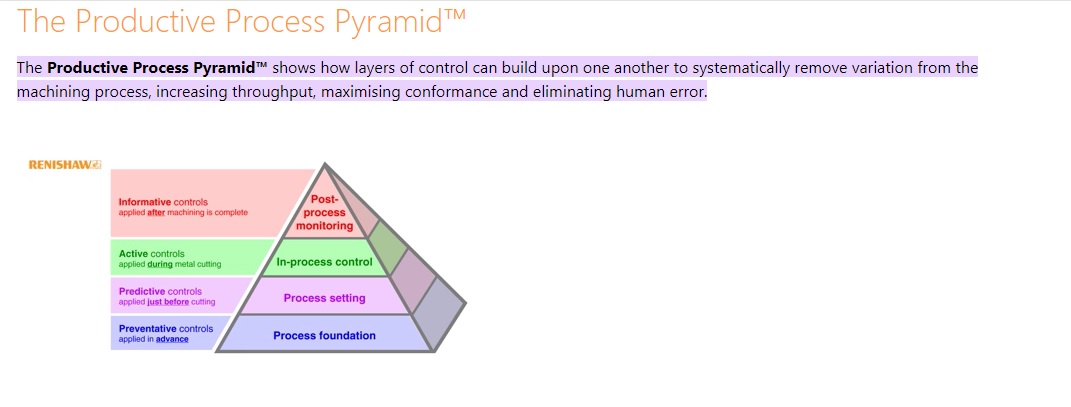

Over the years, Renishaw has helped hundreds of global customers integrate metrology and proactively apply controls using its Productive Process Pyramid concept, supporting them through four core steps:

  • The Process foundation requires engineers to consider how they set up the entire factory for consistent performance, including CNC machine assessment, control of tooling, fixtures, and other critical sources of variation.
  • Next, manufacturers can look at process settings, checking the machine, tooling, material, and fixtures before machining – integrating metrology to automate and eliminate manual intervention.
  • Adding probing within a CNC operation, in-process controls automatically react to any real-time changes, for example, temperature variations, tool wear, and process drift, again, avoiding expert intervention and adjustment.
  • Following machining, measuring at the post-process stage enables engineers to validate the process step or final part. However, if manufacturers have already taken the previous preventative, predictive, and active steps to improve process control, quality confidence is already high.

Data-driven manufacturing
To derive the full value of metrology, manufacturers require a great deal of process data to be collected, as well as the ability to leverage the measurement results. With the right tools, manufacturers can use this data to gain valuable insights into the entire process chain, finding where they can make changes that will be most impactful to process control, quality, and productivity.

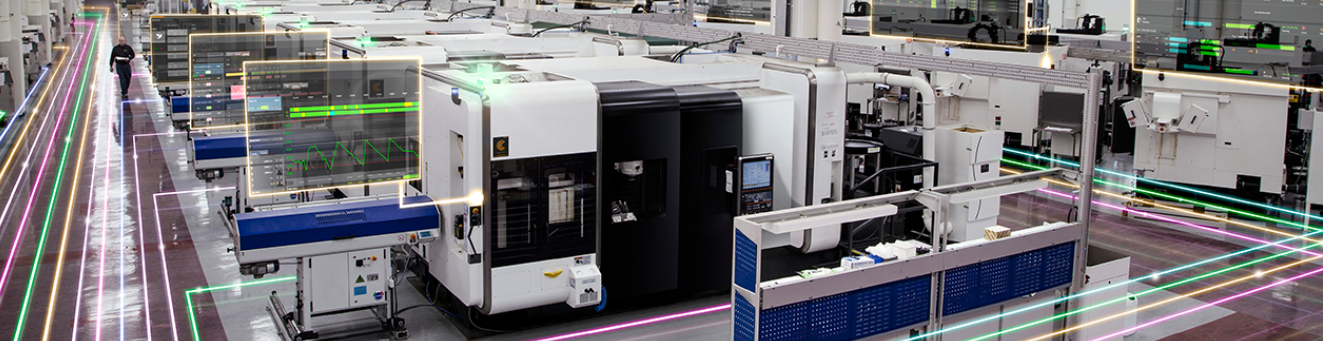

Organizing manufacturing data to provide valuable insights at each of these stages has traditionally been difficult on the shop floor. However, the introduction of Renishaw Central, which is a manufacturing data and machine shop connectivity platform, can digitalize all process and metrology data, and visualize, and automatically control all manufacturing and measurement processes. The results can be significant — Renishaw Central, piloted in our machine shops allowed us to reduce unplanned automation stoppages and increase machining capacity by 79 hours per week. We were also able to reduce CNC setting times by over 80% when it was applied with our Equator gauging system and IPC (Intelligent process control) software.

Renishaw Central

Manufacturers can now use real-time process and measurement data to improve operations part-by-part, batch-by-batch, and drive long-term improvement, with a smart factory approach to analyzing process data. Monitoring patterns in process data over time enables engineers to continuously improve and optimize. This could mean enhanced product performance, more robust process design, or making products faster at lower cost.

In our factories today, there are still occasions where we experience minor, frustrating stoppages, process alarms, or events that impact productivity. However, as we gain more visibility of our processes, over time, we can adapt and continuously improve them. As we begin to understand our longer-term manufacturing capability, we can make informed decisions to refine the frequency of measurements and controls.


Looking forward
As manufacturing becomes more autonomous, we see a trend towards metrology being directly integrated into all automated CNC machining systems. With this approach, manufacturers can leave machines running unmanned making good parts, safely, improving productivity, and freeing up engineers for more proactive value-added activities.

Fully automated systems become critical as manufacturing looks to reshore operations. To enable manufacturers to become more globally cost-competitive and ensure a resilient, local supply chain, it will be vital to manage these operations using automated metrology systems that collect real-time data.

There has been a huge shift in measurement technology in the last 50 years, taking metrology from an off-line inspection process into a fundamental pillar of high-precision, automated manufacturing. It has been a privilege to work alongside so many passionate engineers and manufacturing customers over the last few decades. They have helped to drive this change and transformed the performance and quality of products globally including cars, jet engines, mobile phones, and anything precision molded or machined. All these products are influenced by Renishaw technology at some point during their manufacture.

For the unedited version of this whitepaper, click here.
