Like ice cream, multiple-spindle machine tools come in an assortment of flavors. The underlining ingredients, however, are enhanced throughput, reduced energy consumption and maximized floor space.

In the minds of some metalworking professionals, multiple-spindle machining conjures up images of massive transfer lines with 40 or more spindles on a head, or 6-spindle automatic screw machines for making huge quantities of the same parts—a capability that continues to diminish in demand. Six-spindle technologies are great at pounding out a lot of parts, but don’t have the flexibility to produce less-than-huge lot sizes and can’t adapt to the pace of part design changes seen in today’s production environment, according to David Fischer, product specialist for Okuma America Corp., Charlotte, N.C.

Okuma offers an array of multiple-spindle alternatives that enable more flexibility. These include twin-spindle vertical and horizontal turning centers with side-by-side spindles and horizontal turning centers with two opposing spindles. “You’re basically machining on one side and then passing it off and machining it on the other side,” Fischer said about the latter. “It may have some oddball secondary operations, but for the most part, you can go to finished part without any operator intervention with dual-spindle capability.”


Chiron DZ08 FX dual-spindle machine demonstration
It’s critical is to properly capacitize a multispindle machine, such as this Chiron DZ08 FX dual-spindle machine. Click here to view video courtesy of Chiron America.

He added that with the side-by-side verticals, most customers run the first operation on one spindle and the second operation on the other after a robot or operator transfers the part. In contrast, the side-by-side horizontal-type lathes come packaged with a parts loader and users either simultaneously run the same operation on both spindles or run separate operations on each spindle. “There’s a lot of flexibility and that’s the whole purpose,” Fischer said. “The customer can decide what suits him best for his production application.”

Although the builders of multispindle machine tools typically max out at 4-spindle offerings, Chiron America Inc. did produce a special-purpose 7-spindle configuration for machining injector bodies, explained Norm Holtzhauer, engineering manager for the Charlotte, N.C., company. The tool in the first spindle is for centering, the next two perform predrilling and the remainder simultaneously deep-hole drill four parts.

Automated part load and unload enhances flexibility by enabling users to teach the robot location points for a specific part and then load that set of “teach points” when a job repeats, Fischer noted. Nonetheless, the twin-spindle machines are for relatively high volumes. “There is a lot of flexibility, but you’re not going to run it for onesies or twosies or 10 or 20 parts.”

Suitable Scenarios

SW North America Inc., for example, targets its 2-, 3- and 4-spindle horizontals for production volumes starting at around 250,000 parts per year, according to Matthew Raleigh, application engineer for the machine tool builder. However, he noted if a part has a long cycle time, say 20 minutes, an annual volume of 50,000 parts can be appropriate.

Because of the need for high part volumes, the company targets Tier 1, 2 and even 3 auto suppliers, added James Campbell, vice president of sales for SW North America. The German machine builder opened its Canton, Mich., facility this year to expand business throughout the North American market.

Holtzhauer concurred that part volume is the primary driver determining if a multispindle machine is appropriate. Producing a couple thousand pieces quicker on a twin-spindle machine compared to a single-spindle one is all well and good, but if those pieces are never coming back, a part manufacturer will spend a lot of upfront money for extra fixtures and tools that it won’t be able to recover.

Again, what’s critical is to properly capacitize a multispindle machine. “We have aerospace and medical companies making parts that take 12 to 15 minutes on twin-spindle machines,” Holtzhauer said. “Their volumes are only 20,000 to 30,000 parts, but it takes a whole year to make them.”

A twin-spindle machine with two part nests per spindle is the “sweet spot” and is twice as fast as a single-spindle machine with two nests, he explained. “We call that 2+2. That is the fastest you’re going to be,” he said, adding that Chiron has conducted tests with four to 12 nests. “You can add more parts, depending on the size of your machine and size of your part, but you reach a breakeven point where having to build all the extra nests doesn’t pay for the extra volume you get.”

The four nests are aligned in pairs, and two can be fixed while the other two are movable in the X, Y and Z axes, Holtzhauer added. To enable high part accuracy, the company uses ground shims to adjust the nests and lock them in within microns of each other, with two in the X-axis, one in the Y-axis and three in the Z-axis.

A 4-spindle machine becomes an option when part volume or cycle time dictate that multiple machines would otherwise be required to meet production demands, according to Holtzhauer. This machine would reduce floor space while achieving production goals. Possible applications include deep-hole drilling injector bodies and fuel pumps. “The deep-hole drilling process is slow, so we can have four spindles doing the same process,” he said.

Raleigh noted 4-spindle machines are for parts with tight feature tolerances, such as a brake caliper, but don’t require tight positional tolerances. “On more critical parts, let’s say an aluminum transmission housing, generally we always go with a 2-spindle machine,” he said. Three-spindle machines are for special applications that fall between the volume requirements for a 2- and 4-spindle one.

Step Lightly

In addition, multispindle customers tend to be concerned about floor space. An SW twin-spindle machine can replace three single-spindle machines, according to Campbell. The multispindle unit, even with its heavy monoblock design to minimize deflection, has only a slightly larger footprint than a comparable single-spindle machine while costing about 50 percent more, he added. Most multispindle machines are for new projects and customers want to see how many parts they can produce per square foot while reducing the cost per part. “Nobody wants to add brick and mortar anymore,” Campbell said.

A twin-spindle machine with two part nests per spindle is the “sweet spot” and is twice as fast as a single-spindle machine with two nests, according to Chiron America. Courtesy of Chiron America.

A multispindle machine reduces the cost per part by reducing the required labor, automation and ancillary equipment, Raleigh pointed out. “You don’t have to buy two cooling units, for example, and you don’t need two robots to load and unload it,” he said, noting that one robot or a gantry system is sufficient. “You’re machining two, three or four parts at the same time and making tool changes at the same time. You can amortize those values over two, three or four parts, depending on how many spindles you have.”

A multispindle machine also reduces energy costs compared to a single-spindle machine. For example, generating clean compressed air consumes expensive energy. According to SW, four 1-spindle machines each have a one-position encoder in the X, Y and Z axes, all 12 of which require air for sealing. A 4-spindle machine only needs four (two in the Y-axis) and, therefore, sealing requires 67 percent less compressed air.

“It doesn’t show up on a lot of spreadsheets, but there is a lower energy cost,” Campbell said.

Lightning Fast and Lights Out

To boost throughput by getting complex parts done in one, Eurotech offers double-spindle, double- or triple-turret turn/mill centers with two or three Y axes, said Larry Greenawalt, applications engineering manager for the Brooksville, Fla., machine builder. “You start with raw bar stock coming from a bar feeder through the spindle and complete everything that’s needed on that part.” This can include polygon milling, broaching, spline cutting and drilling angular holes with an articulating B-axis or angular live tools. “Can we produce this part where maybe the customer just has to clean it, put it in a bag and send it out? That’s what we look at first.”

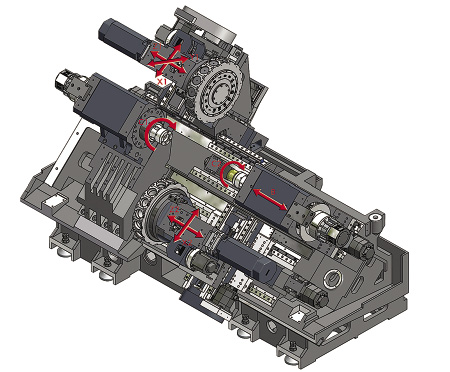

Eurotech’s Clearshift feature enables the subspindle to be offset from the main spindle. This eliminates most interference problems between the two turrets on Trofeo series machines. Both turrets can machine on the main spindle or subspindle. Courtesy of Eurotech.

Greenawalt emphasized the ability of the upper turret to perform ID operations up to about 10 " (254mm) long with the Clearshift subspindle on Eurotech’s Trofeo twin-spindle machines. To eliminate interference between the two turrets, the subspindle shifts down and away from the main spindle centerline instead of having the subspindle in line with the main.

The alternative is to build a machine with an extremely long Z-axis. “You don’t find that many long-bed, 2-turret machines out there,” he said. “But we have that flexibility to shift down and out of the way, so when simultaneous operations are going on you really don’t have any concern over clearance between two turrets trying to share the same space.”

A gantry loader helps the Trofeo machine perform unattended machining, Greenawalt explained. It normally comes down and catches the part coming off the subspindle, but it can also articulate 180° and catch from the main spindle, which is beneficial when handling short bar remnants. Rather than pushing a remnant into the chip pan and letting the conveyor carry it, which might cause it to jam the conveyor or need to be manually separated from the machined chips, the gantry unloader catches the remnant and brings it to the work conveyor that removes parts from the machine. While good parts come out towards the operator, an M code reverses the conveyor to deliver the remnant to the back of the machine.

A gantry loader helps the Trofeo machine from Eurotech perform unattended machining. Courtesy of Eurotech.

And while the gantry is catching the part, machining continues on the upper and lower turrets. According to Greenawalt, stopping the machining process to catch a part adds 16 to 18 seconds to cycle time. “In our marketing, we always emphasize speed,” he said. “That’s one small example of where we gain an advantage.”

Although 25 percent of Eurotech’s sales effort targets part manufacturers already familiar with multispindle turn/mill centers, Greenawalt noted the remainder is geared towards presenting an alternative to users focused on using work cells. Such a cell might include a 2-axis lathe, a 3-axis VMC and a parts washer. “Our concept is to make the part complete and run 24/7 unattended, and we have customers doing that.”

A 6-spindle screw machine is another option for quickly producing complex parts, but the price can start at $1 million. The flexibility of multiple-spindle and -turret machines, such as putting more than one tool on one turret station, makes the lower-cost, dual-spindle equipment suitable even for job shops, Greenawalt said. “We have a tool called Quad ID Block, where we can put eight ID tools on one station: four out the front and four out the back. That concept is used by a lot of contract shops to reduce setup.”

Setup can also be reduced by machining different parts from the same bar stock diameter, such as 13/8" (34.9mm), even when the maximum feature is only 1 " (25.4mm) in diameter. “It’s almost a wash as far as the extra cost to run 13/8" versus 1 ",” Greenawalt said. “As fast as an operator can change over to the next program is the setup time. We’re talking 1 to 2 minutes.”


Okuma’s Fischer emphasized that a priority when designing a twin-spindle machine is to keep it simple for the operator and programmer. When programming a specific turret/spindle combination, such as upper turret with left spindle or lower turret with right spindle, they are programmed as if they were upper turret with left spindle. “The Okuma OSP control flips the geometry based on the actual turret/spindle combination,” he said.

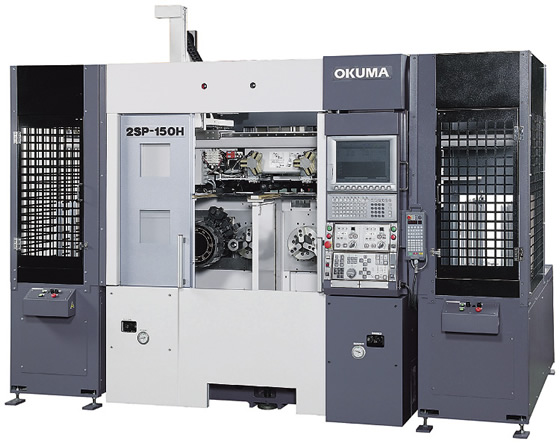

Okuma's 2SP-150H machine has two spidles positioned side by side. Courtesy of Okuma America.

So if an end user wants to run a fea ture on the lower turret instead of the upper, Fischer continued, he simply changes the G code and it will run on the lower turret. “What’s nice is the programmer doesn’t have to change his way of thinking whether he’s on the upper turret, lower turret, left spindle or right spindle.”

If the programmer wants to change the process and do an operation on the right spindle instead of the left one to provide a better balance, for example, he doesn’t have to recode the whole process. “He can just flip the G code and change it to the right spindle,” Fischer said. “The geometry stays the same inside the program. We use one program for both turrets.”

This makes file management less cumbersome. Instead of having, say, 1,500 files for 500 programs on a 3-turret machine, a user has just 500 files, Fischer said. “The operator has to load one program correctly, not two or three.”

While a multiple-spindle machine tool isn’t a good fit for everyone, the consequences can be significant when it is. “If you get left behind on the technology, you put your business at risk,” Fischer warned.

Nonetheless, getting the first multiple-spindle machine in an appropriate plant can be a challenge. SW North America’s Campbell said having a spindle fail is a primary concern among prospects. To make them more comfortable with the technology, he provides information about the low failure rate for its spindles and the builder’s ability to quickly replace a spindle should one fail. “The spindles are very seldom a problem,” he added.

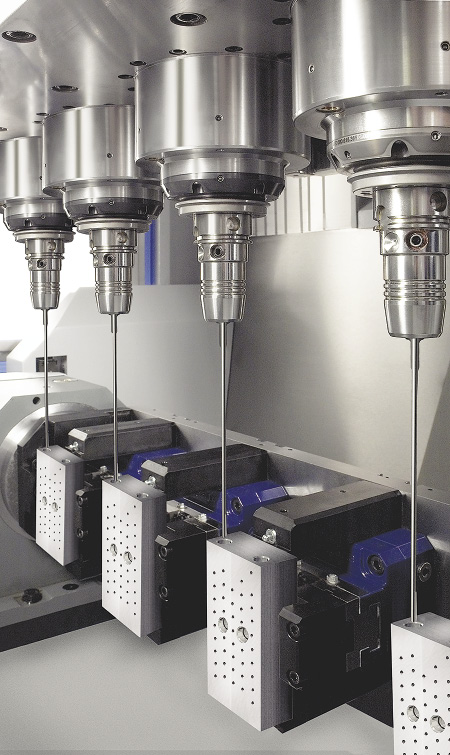

A 4-spindle machine, such as this Chiron TZ12 W, is an option when part volume or cycle time dictate that multiple machines would otherwise be required to meet production demands. Courtesy of Chiron America.

After customers realize the benefits with one, repeat sales are a breeze. “I would say 60 to 75 percent of our sales are from repeat customers,” Campbell said, “which is really what it’s all about.”

And one multispindle benefit trumps all others. The machines cost about 35 percent more than the company’s single-spindle machine, said Chiron’s Holtzhauer, “but you’re basically getting double the output, so you are going to see a nice drop in the cost per part.”

A different shade of multiple spindle

Some multiple-spindle machine tools are cutting-tool-intensive. The Cyclone 70 3TMY twin-spindle, 3-turret CNC turn/mill screw machine from Ganesh Machinery, for example, has 16 tool positions on each turret for a total of 48 positions. Each tool position can support multiple cutting tools from the front and back of the toolholder, and, with the Y-axis, users can mount up to four turning tools in one tool station. In addition, employing boring bars with dual inserts enhances the tool count. This enables the machine to have 80 or more tools, depending on the application, explained Kamal Grewal, who handles marketing for the Chatsworth, Calif., machine tool builder.

He added that the machine, which has a bar capacity of 71mm (2.75 "), performs simultaneous front and back work to get a part done in one chucking. “It’s a combined turning and milling operation.”

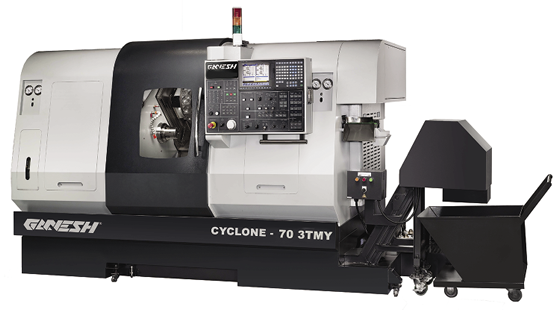

The Cyclone 70 3TMY from Ganesh Machinery is a twin-spindle mill/turn machine with two Y-axis tool turrets in the upper position and a 2-axis tool turret on the lower slideway. Courtesy of Ganesh Machinery.

According to the company, a machine tooled up to that level allows multiple jobs to be set up on the machine at once, so an operator can go from job to job without needing a setup man.

Using a tool life management system, an ample number of tools also lets a shop apply a redundant tool rather than replace a tool when it wears out. This is particularly beneficial when running unattended, noted Jeff Jessop, an application engineer for Ganesh.

“Each of those tool positions has live tool capability as well,” Jessop said. “If you want to use live tooling or standard dead tooling to perform deburring, for example, you can do that in the machine.”
This arrangement allows the machine to do the deburring rather than a low-skilled worker, who might scrap a nearly finished part during manual deburring.

The 11-axis machine has a solid headstock, so it doesn’t have a guide bushing, and requires users to think outside of the box. “You’re looking at a machine where, typically speaking, you have three tools in the cut on two parts at one time,” Jessop said. “It’s not something you think conventionally about. You have to think about what all your possibilities are and how you can utilize them.”

—A. Richter
