Thermocouples embedded in coating of cutting insert measures tool/chip temperature

Author Robert Weinstein
February 19, 2018 - 10:15am

One of the challenges of metalcutting—whether it is interrupted or continuous—is measuring, and therefore monitoring, the temperature of the tool/chip interface. This challenge assumes greater urgency with the desire to develop smart cutting tools.

Higher cutting temperatures can lead not only to more rapid tool wear but to tool failures or even metal fires. Understanding and controlling these temperatures is essential for developing better machining processes.

A team of researchers at the University of Wisconsin-Madison has addressed the challenge by using thermocouples embedded in a cutting insert’s coating to measure the tool/chip interface temperature.

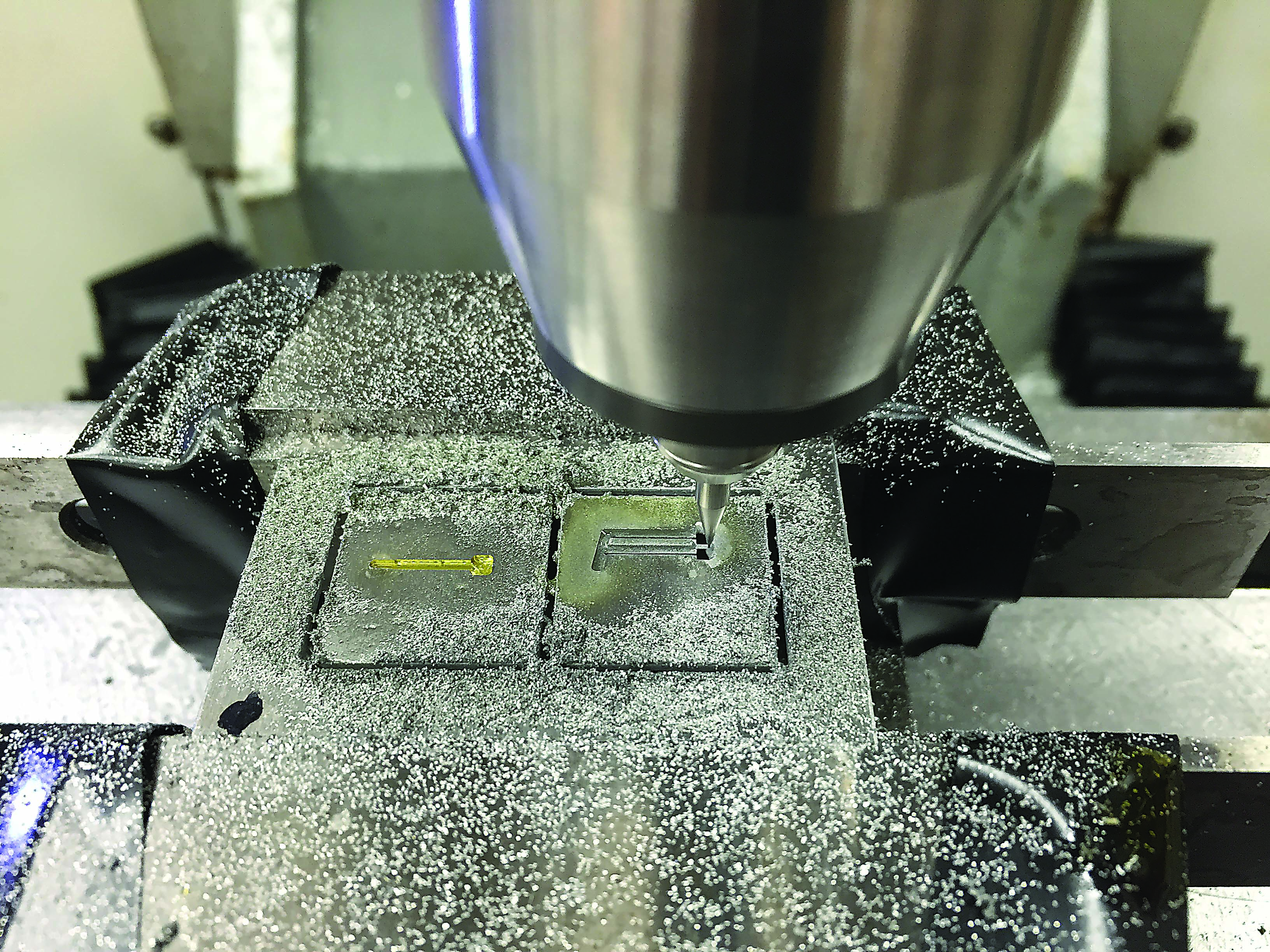

Mask fabrication for thin-film thermocouple sputtering (physical vapor deposition). Image courtesy of Sinan Kesrikliolu.

Frank Pfefferkorn, associate professor of mechanical engineering at the university and director of the Manufacturing Systems Engineering Program, leads the team. He said team members worked with standard tungsten-carbide inserts and conducted the first tests on AISI 12L14 steel. They used micromachined stencils to sputter the thin-film thermocouples onto the inserts, then coated the junction with a protective layer.

“These tests let us observe the influence that both cutting speed and cooling intervals have on the tool/chip interface temperature,” Pfefferkorn said. “Part of the challenge overall is to achieve response times that are fast enough that the temperature sensor can capture the data.”

Very fast measurement response times are made possible by embedding the thermocouples inside the tool coating, where it is a mere 1.3μm below the tool/chip interface.

He added that the inserts must be fabricated in a way that the coatings do not delaminate when machining steels of low-to-moderate hardness at a speed range beyond which a built-up edge forms.

The researchers initially selected relatively large thermocouple junctions (100μm × 100μm) for the test inserts. These junctions could be produced with sputtering through masks, and the masks could be fabricated with micro-endmilling rather than more complicated processes.

The study demonstrates that the temperature for the tool/chip interface is lower for interrupted cutting than for continuous cutting. Noncutting periods decrease the overall heat input, allowing the tool to dissipate the heat.

“We chose this approach to instrumenting a cutting insert to make it easier to take these findings out of the lab and apply them to the production environment,” Pfefferkorn said. “Improved capabilities for monitoring temperature will help us look further into the impact of temperature on milling and tool wear. They will enable us to improve the various cooling methods that affect the interface temperature and actively control it.”

For more information about manufacturing research at the University of Wisconsin-Madison, visit or call (608) 263-2668.
