Quicktech S-32 ATM 9-Axis, Twin-Spindle Mill/Turn Center

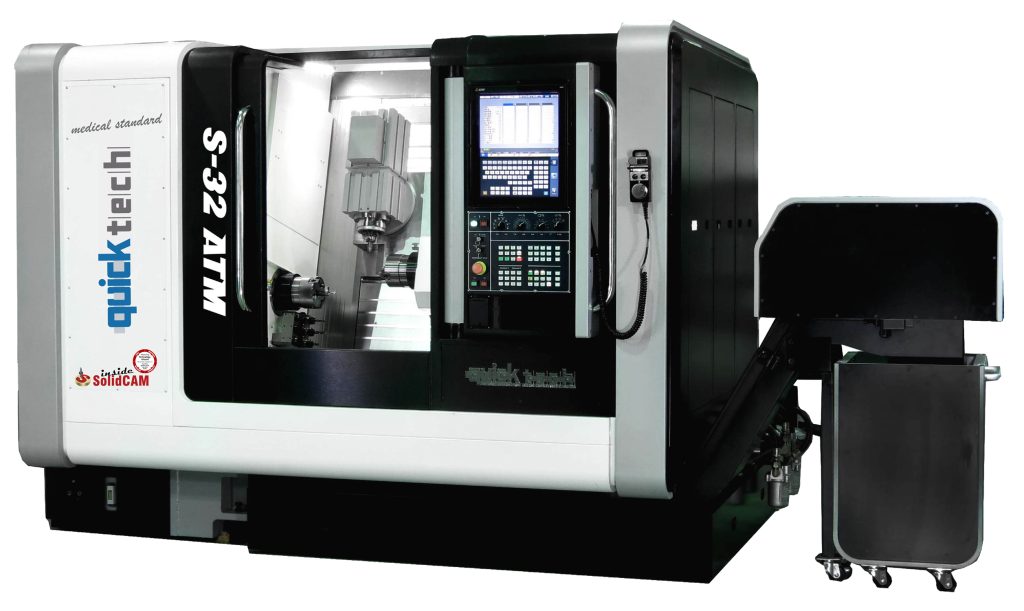

The compact, high-precision Quicktech S-32 ATM 9-axis, twin-spindle mill/turn center combines integral-motor main- and sub-spindles with a 190° B-axis milling head and a fast automatic toolchanger to maximize output of small, complex parts. Quicktech machines are distributed in North America exclusively by Absolute Machine Tools Inc.

Steve Ortner, president and owner of Absolute Machine Tools, said, “These compact, versatile machines enable manufacturers to produce precise, complex smaller parts quickly, with the added benefits of the accuracy and consistency that result from processing the parts on a single machine tool. This machine is ideal for medical applications, for example.”

The S-32 ATM has 9 axes in total, including two turning spindles and a 190° B-axis milling spindle, serviced by a 24-tool arm-type automatic changer. Six fixed gang-type ID turning tools at subspindle result in a total capacity of 30 tools. The machine’s compact 3750mm (150") x 2175mm (87") x 2025mm (81") dimensions (including chip conveyor) promote efficient use of manufacturing floor space.

Both the main spindle and sub-spindle feature 6,000 rpm, 5-hp high-torque integral motors and have 42mm collet chucks (or 5" 3-jaw hydraulic chucks) with capacity for 30mm bar stock. The spindles feature a continuous C-axis with a braking system and are fully synchronized for fast and accurate part transfer.

The 10,000 rpm, 3-hp, HSK40-T B-axis milling spindle services both turning main- and sub-spindles and has a working range of 190˚ (+/- 95˚ from vertical). The B-axis is locked in position for rigid turning operations. The 24-tool arm-type toolchanger, with an HSK-40T quick-change tooling system, produces tool change times of only 1.3 seconds. The sub-spindle moves in the X-, Y-, and Z-axes, and in the X-axis can move above and below the centerline to clear the B-axis and enable it to have full tilting capabilities. At the sub-spindle are six gang-type turning tools that allow simultaneous turning and milling operations. Rigid tapping is standard.

The main- and sub-spindles employ P4 high-precision bearings for stability and heavy cutting ability. The machine frame and all major components are heavy Meehanite cast iron. Large 35mm Hiwin roller-type linear guideways in all linear axes provide stability and permit heavier machining. Substantial 32mm ballscrews are double anchored, pre-tensioned and direct coupled to the machine’s servomotors.

The machine is equipped with a Mitsubishi M830W control with a 475mm (19”) LCD, and all spindles and axes employ Mitsubishi AC servomotors and amplifiers. Also available is a FANUC OiT-F control with a 275mm (15") LCD and matching FANUC motors and drives. Standard machine features include a bar feeder interface, parts conveyor and catcher, chip conveyor, collet chucks and a 400-psi coolant pump.
