PUMA 1000/M Machines Large-Diameter Parts

September 18, 2017
PUMA 1000/M Machines Large-Diameter Parts

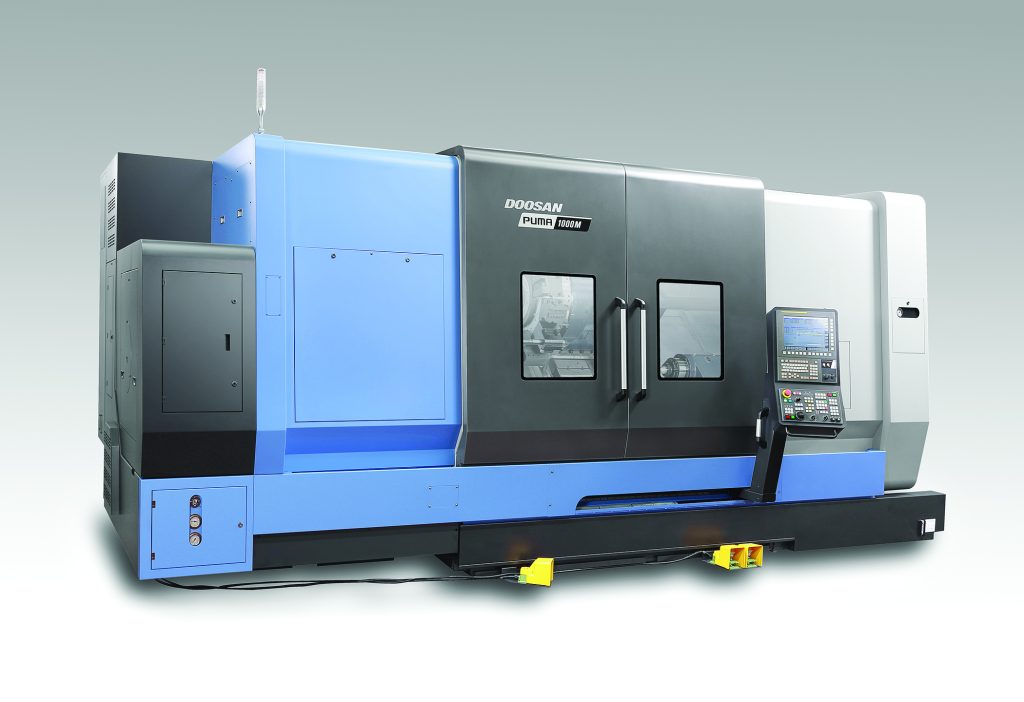

Doosan Machine Tools America presents the PUMA 1000/M, which was specifically developed for industries like oil and aviation that have the need to machine large-diameter parts. The latest model in the PUMA 1000 series incorporates a highly rigid live tool turret and machines large rings, flanges, shafts and pipes.

The PUMA 1000/M provides a spacious working area with a maximum machining diameter of 1000mm (39 in.) and a maximum machining length of 2040mm (80 in.). Most notably, the wide spindle through-hole of up to 560mm (22 in.) enables the processing of long pipes and rods required for offshore plants and oil exploration.

Equipped with a two-stage gearbox featuring a high-output spindle with a maximum output of 75kW (100 hp.), the PUMA 1000/M has the strongest cutting capacity in its class. It is also equipped with a 250mm (10 in.) thick turret with a more robust design than the previous model. The adoption of a highly reliable servo motor for the turret reduces vibration during turning and milling, maximizing stability during heavy-duty cutting.

Massive front and rear chucks stabilize long workpieces for precision while a special creeping feature feeds the tailstock center into the work piece smoothly. Unlike some competitive models, the PUMA 1000B/MB incorporates special covers at the rear to keep the work area clear of coolant and chips.

To further enhance user convenience, the PUMA 1000/M provides a programmable tailstock with a built-in dead center and user-friendly Easy Operation Package (EOP) smart software program and EZ functions as standard features. Another standard feature is arbitrary speed threading, which allows the operator to change the speed during the threading cuts to eliminate chatter. Additional options can be configured to suit the customer's unique applications, such as twin chucking, vibration damping, long boring bar, automatic tool setter and linear scale.

“The new PUMA 1000/M is a heavy-duty, big bore turning center that can handle the largest workpieces with a combination of stability, power and control,” states Jim Shiner, director of sales and marketing at Doosan Machine Tools America. “It is already following in the footsteps of other PUMA models, which have a global reputation for producing high quality parts with maximum productivity and profitability.”
