Multi-Master Milling Heads

January 25, 2024
Multi-Master Milling Heads With 1.5xD Long Flutes

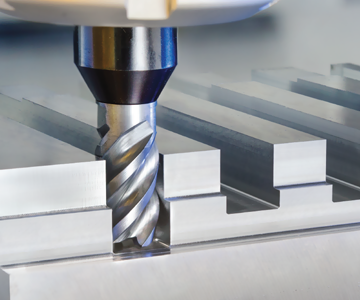

Following long experience with MULTI-MASTER milling heads, ISCAR is expanding their application range by increasing the depth of cut vs. tool diameter ratio from the current 0.7xD to 1.5xD.

The new milling heads have been designed for shoulder roughing, semi-finishing and finishing applications with ramping down capability.

The new milling heads are available in .312-1.00” diameter range.

MM EC-CF-Z7/9-1.5xD Interchangeable 7-9 flute solid carbide endmill heads with 1.5xD flute lengths, different helix, variable pitch and various corner radii.

MM EC-CF-Z4-1.5xD Interchangeable solid carbide heads with variable pitch and 1.5xD flute lengths for chatter free roughing and finishing operations. High material removal rates.

MM ERS-1.5xD Interchangeable solid carbide rough milling heads with 1.5xD flute lengths, for high metal removal application.

It is recommended to use the new long flute milling heads with MM S-A (straight shanks) reinforced, Weldon type or SURELOCK shanks with pull-out prevention helical grooves.

MM EC-CF-Z4-1.5xD
Interchangeable Solid Carbide Endmill Heads with 1.5xD Flute Lengths for Chatter Free Roughing and Finishing

• Do not apply lubricant to the threaded connection.
(1) Number of flutes
• Maximum depth of cut (APMX) while milling full slot from solid material is 1×DC
• Maximum width of cut for milling shoulder with APMX=1.5×DC is 0.3×DC
• Reinforced Weldon or SURELOCK shanks (with Safe-Lock® by Haimer pull-out prevention helical grooves) is strongly recommended
• In cases of unfavorable machining conditions, the cutting data should be decreased by 20-30%

MM EC-CF-Z7/9-1.5xD
Interchangeable 7, 9 Flute Solid Carbide Endmill
Heads 36° Helix with 1.5xD Flute Lengths

• Do not apply lubricant to the threaded connection.
(1) Number of flutes
(2) Maximum ramping angle
• Intended for high-speed trochoidal milling and finishing operations with max. width of cut =0.1×DC
• Reinforced Weldon or SURELOCK shanks (with Safe-Lock® by Haimer pull-out prevention helical grooves) is strongly recommended
• In cases of unfavorable machining conditions, the cutting data should be decreased by 20-30%

MM ERS-1.5xD
Interchangeable Solid Carbide Rough Milling Heads with 1.5xD Flute Lengths for High Metal Removal Rates

• Do not apply lubricant to the threaded connection.
(1) Number of flutes
(2) Maximum ramping angle
• Maximum depth of cut (APMX) while milling full slot from solid material is 1×DC
• Maximum width of cut for milling shoulder with APMX=1.5×DC is 0.3×DC
• Reinforced Weldon or SURELOCK shanks (with Safe-Lock® by Haimer pull-out prevention helical grooves) is strongly recommended
• In cases of unfavorable machining conditions, the cutting data should be decreased by 20-30%
