Model 1000 Sliding Jaw Air Chuck

Contact Details

Northfield Precision Instrument Corp.
Address
4400 Austin Blvd.
Island Park
11558-0550
NY
United States
Phone
516-431-1112
Toll Free Phone
800-810-2482
Fax
516-431-1928
December 13,2013

Northfield Precision Instrument Corp. introduces its Model 1000 Sliding Jaw air chuck. This air chuck, with 0.0001" TIR, has a special top tooling and axial locator. This particular air chuck was custom designed for a gaging company that needed to grip a small area of a large casting so they could check OD runout of their part.

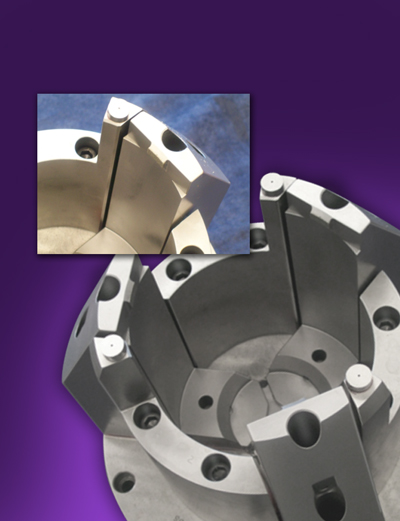

Special, tall top jaws are diamond-coated for a secure grip on the casting. An axial locator with button pads is used as a resting surface for the part's flange while swallowing the rest of the part.
