G7 i Grinder 5-axis Horizontal Machining Center

August 13, 2012

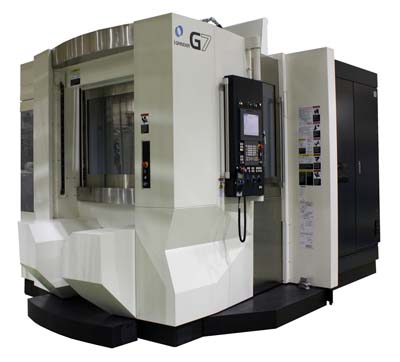

The G7 i Grinder 5-axis horizontal machining center from Makino offers a flexible, single-platform solution for grinding, drilling and milling of aerospace blades, vanes, turbine disks and other complex grinding applications. Its multifunctional configuration paired with 5-axis capabilities enables aerospace manufacturers to eliminate setups, work in process, stack-up errors, and fixture costs. It also simplifies the manufacturing process with NC-controlled intermittent dress.

"Today's capital equipment must be more flexible and capable than ever, removing non-value-added time from the manufacturing process," said David Ward, horizontal product line manager at Makino. "With the G7's capability of combined milling and grinding operations, you're not only saving on capital equipment, but you're also eliminating multiple set-up operations and work in progress times that add to your costs and lead-time."

Similar to Makino's G5 5-axis horizontal machining center, the G7 employs a 12,000-rpm HSK-63A spindle capable of handling tough-to-cut materials, such as inconel. The machine provides X-, Y- and Z-axis travels of 690mm by 650mm by 730mm, respectively, accommodating workpieces with a maximum diameter of 535mm. This ability enables machining of parts one size larger than the G5, such as super-heat-resistant jet engine parts, curvic couplings and vanes (NGV). Its infinite C-axis rotation and maximum B-axis rotation of 270 degrees offer full access to three-dimensional parts for single-setup production capabilities.

A unique two-axis Programmable Coolant Nozzle (PCN) lets the G7 accommodate variations in wheel diameter and changes in cutting direction while maintaining ideal coolant flushing conditions. It also allows for intermittent rotary dressing, an NC-controlled, electrically powered feature that trues the wheel to reestablish profile geometry on the cutting wheel. Combined use with the standard 60-tool capacity automatic tool changer enables continuous operation to be performed, maximizing throughput.
