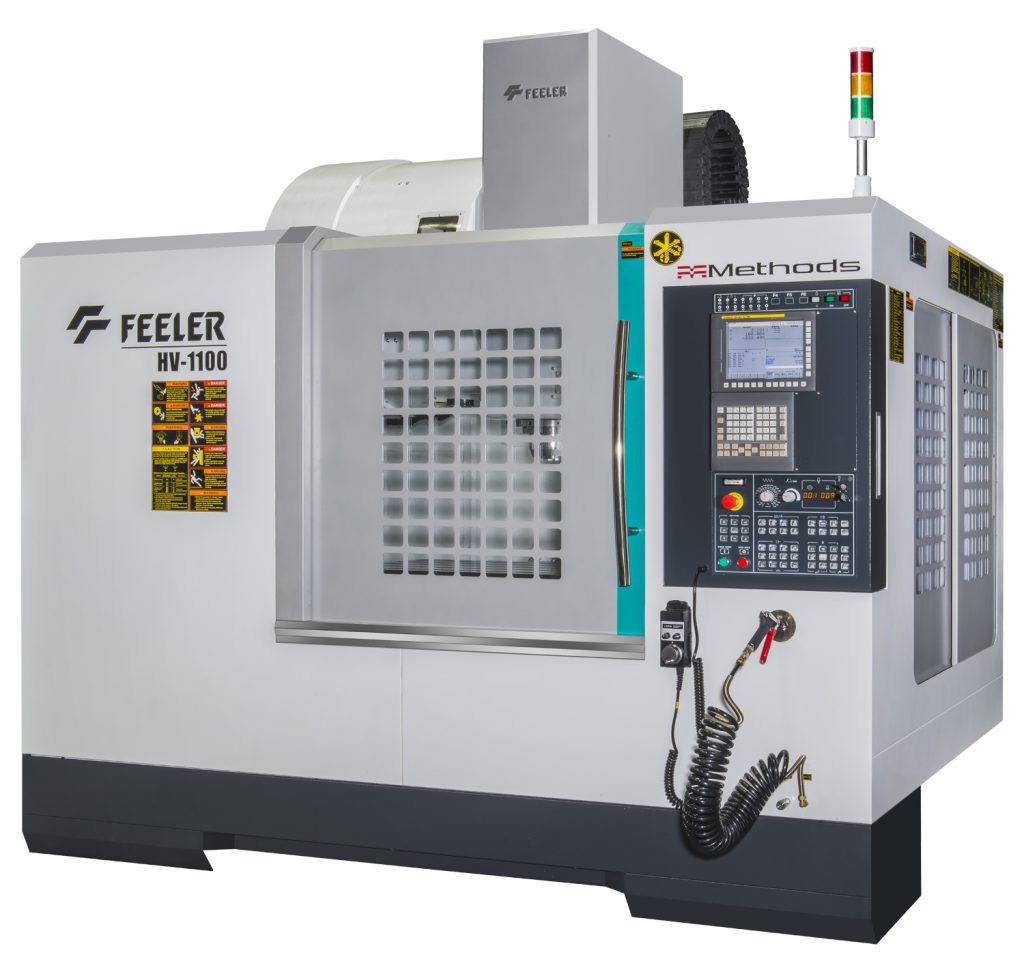

Methods Machine Tools Inc. has expanded its FEELER line to include the FEELER HV-1100V, a high performance vertical machining center that features a rigid design and many innovative features to provide exceptional accuracy and machining efficiency. The newest of the FEELER HV line, the HV-1100V features a dedicated trunnion, 4+1 axis configuration and a 13.8” (350 mm) rotary table. The trunnion is solidly built by Autocam with roller cam technology, and offers a 16” (406 mm) by 14” (356 mm) work envelope. The tilting A-axis has a full +/-120 degree of motion.
The FEELER HV-1100V’s reinforced cross-ribbed column structure and no counter-balance weight design dramatically improves torsional torque resistance and reduces low frequency resonance for optimal stability, according to the company. This design greatly reduces peck-drilling vibration and prevents oscillation normally caused by a counter-balance weight. The new FEELER design dramatically improves movement stability on the Z-axis and delivers 30 percent increased rigidity for more accuracy, better workpiece finish and less waste.
The FEELER HV-1100V offers an X-Axis travel of 33.5" (850 mm), a Y-Axis travel of 19.3” (490 mm) and a Z-Axis travel of 20.7" (5250 mm). Rigorous speed vibration control is ensured by utilizing a rigid spindle that increases metal-removal rates by more than 30 percent and improves machining accuracy and tool life. A maximum spindle speed of 12,000 RPM on 30-HP direct drive, 40-taper spindle is standard.
The HV-1100V also features a 30 tool swing arm automatic toolchanger magazine with a tool-to-tool time of 1 second at 60Hz. A fast chip removal system with chip conveyor, automatic lubrication system, dust-proof electrical cabinet and Methods’ safety package are all standard on the HV-1100V. A reliable, easy-to-use FANUC 0iMFControl with 4th Axis prep and a 10.4” color LCD is also standard with a swiveling control panel for ergonomics and convenience.
