Fixtureworks® (Fraser, MI), a leading North American manufacturer and supplier of clamps, fixturing accessories, machine tool components and rollers and bumpers, now offers a complete line of quick release clamps and ball lock fasteners.
Quick release clamps and ball locking pins and fasteners have a wide range of applications in fastening, locating, and alignment. They are designed for quick changeover applications and frequent disassembly. Quick release Fastener products are offered in many styles including Button Locking Assemblies, Magnetic Clamp Receptacles, and Quarter-Turn. They are available in a variety of lengths, diameters and materials.
Quick release clamp fasteners help increase productivity by reducing set up times, eliminating errors in assembly and installation and simplifying procedures. They are ideal for frequent set ups, regularly or to reconfigure production equipment. Most specifically, these fasteners may be used in automation to attach conveyors, star wheels, guide plates, shooters, pushers, handling machine chucks, rotary blades and maintenance covers on machines, to name just a few applications. The clamps offer locating repeatability to +/- 0.1 mm.
The ball lock pin fasteners are used to attach fixtures, plates, machine covers and more, joining components with moderate clamping force. A convenient alternative to cumbersome nut-and-bolt assembly, the new quick release fasteners provide for quick, easy and secure changeover and installation without the need for any tools.
The knob-locking clamps are easy to use and offer secure clamping. The button-locking pin series, made of stainless steel, securely locks and then releases with a press of a button. Ideal for tight workspaces, the clamping pins and magnet lock clamping pins with receptacles offer compact and safe locking.

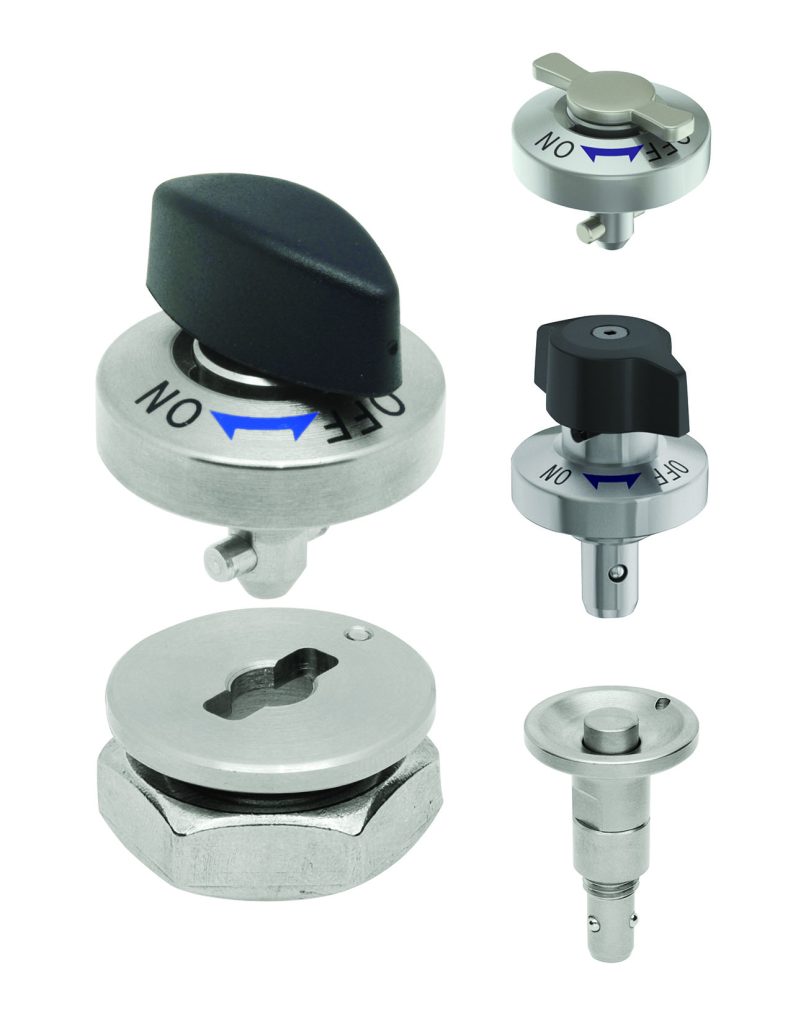

The quarter-turn clamps come with either a plastic knob, metal knob or low-profile knob to provide flexibility for fastening operations. The bodies are made of nickel-plated steel while the pin is stainless. The plastic knob is fiberglass, and the fastener can provide clamping force to 20ft/lb.
Similarly, the knob-locking clamps have a nickel-plated body with a fiberglass knob. The ball and spring are made of stainless steel. These types of fasteners can provide clamping force to 11 ft/lb.
In addition to the Quick Release Fasteners, Fixtureworks offers spring plunger clamps, handle and levers, knobs and grips, equipment handles, hand wheels and cranks, hinges and latches, leveling supports, industrial rubber bumpers, stops and wheels, fixture clamps, clamping locating systems, work positioning elements, vises, grippers and mechanical linear actuators.
