Pitch Line Chuck

Contact Details

Northfield Precision Instrument Corp.
Address
4400 Austin Blvd.
Island Park
11558-0550
NY
United States
Phone
516-431-1112
Toll Free Phone
800-810-2482
Fax
516-431-1928
March 01,2010

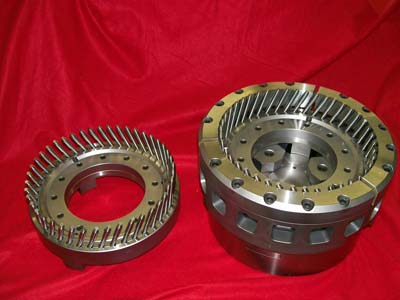

Northfield Precision Instrument Corp., a leader in the design and manufacture of precision workholding chucks, introduces their Model 1000 10"-dia. "Pitch Line" chuck. This chuck grips the O.D. of 9"-dia. helical gears. The pins are mounted in a loose fitting housing so they can float. The pins pick up the pitch diameter and the jaws grip the OD of the pins. The pitch is measured over pins, so it is gripping the same way it measures. The Model 1000 shown has two "pin cages," one for a left hand helix and one for a right hand helix. The pin cages are changed out by removing (3) mounting screws. Northfield Precision designs and manufactures air chucks for any lathe, boring machine, grinder or VMC. Models include through-hole, high-speed and quick-change. Available in SAE or metric, in sizes from 3" (76mm) to 18" (457mm). Accuracies of 0.001" to 0.00001" guaranteed. Custom workholding chucks and jaws are available and free engineering assistance is offered.

Related Glossary Terms

  • boring

    boring

    Enlarging a hole that already has been drilled or cored. Generally, it is an operation of truing the previously drilled hole with a single-point, lathe-type tool. Boring is essentially internal turning, in that usually a single-point cutting tool forms the internal shape. Some tools are available with two cutting edges to balance cutting forces.

  • boring machine

    boring machine

    Similar to a turning machine except that the cutting tool (single-point or multiple-cutting-edge), rather than the workpiece, rotates to perform internal cuts. However, boring can be accomplished by holding the tool stationary and turning the workpiece. Takes a variety of vertical, slanted and horizontal forms, and has one or more spindles. Typically a large, powerful machine, it can readily hold tolerances to 0.0001". See jig boring; lathe; turning machine.

  • chuck

    chuck

    Workholding device that affixes to a mill, lathe or drill-press spindle. It holds a tool or workpiece by one end, allowing it to be rotated. May also be fitted to the machine table to hold a workpiece. Two or more adjustable jaws actually hold the tool or part. May be actuated manually, pneumatically, hydraulically or electrically. See collet.

  • lathe

    lathe

    Turning machine capable of sawing, milling, grinding, gear-cutting, drilling, reaming, boring, threading, facing, chamfering, grooving, knurling, spinning, parting, necking, taper-cutting, and cam- and eccentric-cutting, as well as step- and straight-turning. Comes in a variety of forms, ranging from manual to semiautomatic to fully automatic, with major types being engine lathes, turning and contouring lathes, turret lathes and numerical-control lathes. The engine lathe consists of a headstock and spindle, tailstock, bed, carriage (complete with apron) and cross slides. Features include gear- (speed) and feed-selector levers, toolpost, compound rest, lead screw and reversing lead screw, threading dial and rapid-traverse lever. Special lathe types include through-the-spindle, camshaft and crankshaft, brake drum and rotor, spinning and gun-barrel machines. Toolroom and bench lathes are used for precision work; the former for tool-and-die work and similar tasks, the latter for small workpieces (instruments, watches), normally without a power feed. Models are typically designated according to their “swing,” or the largest-diameter workpiece that can be rotated; bed length, or the distance between centers; and horsepower generated. See turning machine.

  • outer diameter ( OD)

    outer diameter ( OD)

    Dimension that defines the exterior diameter of a cylindrical or round part. See ID, inner diameter.

  • pitch

    pitch

    1. On a saw blade, the number of teeth per inch. 2. In threading, the number of threads per inch.

  • through-hole

    through-hole

    Hole or cavity cut in a solid shape that connects with other holes or extends all the way through the workpiece.
